RAM® Handlebar U-Bolt Double Ball Mount
RAM® Handlebar U-Bolt Double Ball Mount
RAM® Handlebar U-Bolt Double Ball Mount
RAM® Handlebar U-Bolt Double Ball Mount

RAM® Handlebar U-Bolt Double Ball Mount

Part#:
RAM-B-102-231ZU
UPC:
793442110238
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price$82.23
$95.93
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping

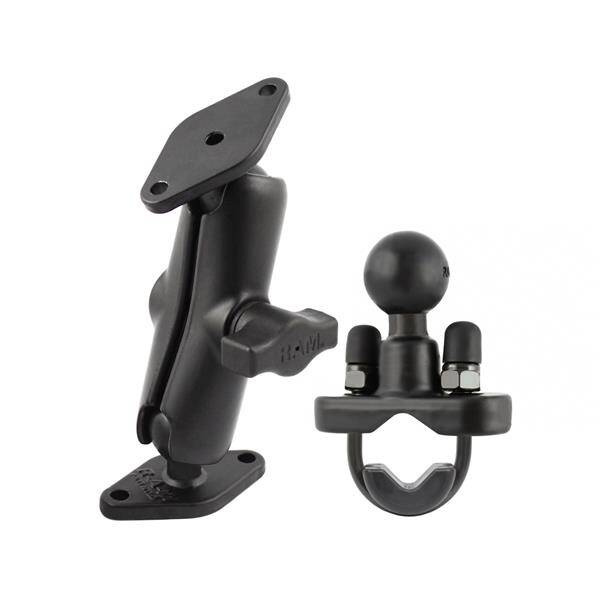

The RAM-B-102-231ZU consists of a double socket arm, two diamond bases and extra zinc coated u-bolt base. The diamond bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. The zinc coated metal u-bolt accommodates rails in diameter from 0.5" to 1.25" in diameter. Also included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5". Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows for infinite articulation and optimum viewing angles.
Brand
RAM Mounts
Symbol
RAM-B-102-231ZU
Producer code
793442110238
Warranty
RAM MOUNT
Product Weight
322 g
Hardware Included
(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
Clamp Range
.5" - 1.25" diameter
Socket-to-Socket Length
3"
Hole Pattern
2-Hole AMPS: 1.912"
AMPS 2-Hole
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Handlebar/Rail
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Component parts
RAM-B-102U
RAM-B-231ZU
Socket To Socket Length
3"
Ball Size
B Size (1")
