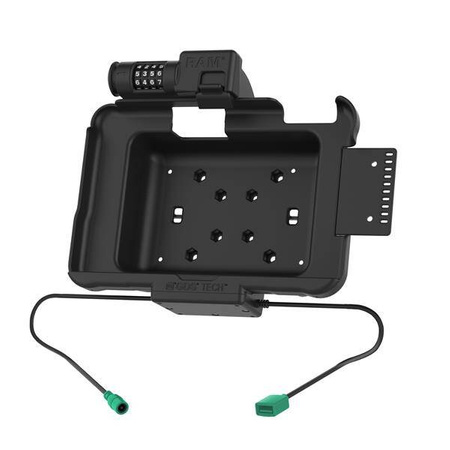

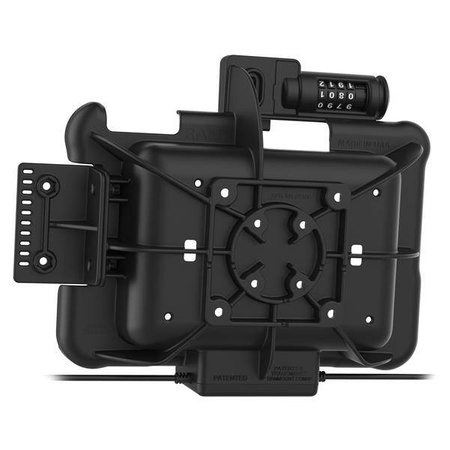

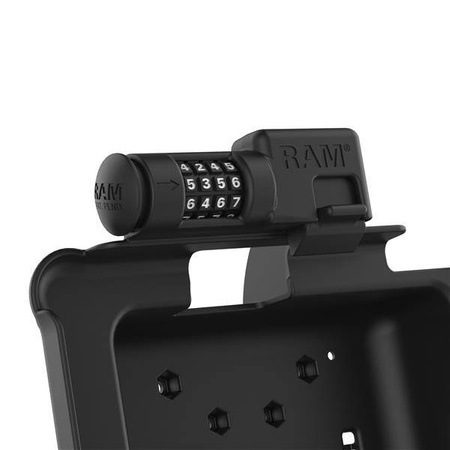

GDS® Combo Locking Power + Data Dock for Zebra ET5x 8.3" & 8.4" Series
GDS® Combo Locking Power + Data Dock for Zebra ET5x 8.3" & 8.4" Series
GDS® Combo Locking Power + Data Dock for Zebra ET5x 8.3" & 8.4" Series
GDS® Combo Locking Power + Data Dock for Zebra ET5x 8.3" & 8.4" Series
GDS® Combo Locking Power + Data Dock for Zebra ET5x 8.3" & 8.4" Series
GDS® Combo Locking Power + Data Dock for Zebra ET5x 8.3" & 8.4" Series
GDS® Combo Locking Power + Data Dock for Zebra ET5x 8.3" & 8.4" Series
GDS® Combo Locking Power + Data Dock for Zebra ET5x 8.3" & 8.4" Series

GDS® Combo Locking Power + Data Dock for Zebra ET5x 8.3" & 8.4" Series

Part#:
RAM-HOL-ZE10PDCLU
UPC:
793442014192
+ Add to compareAdd to shopping list
  • Features:
  • Combination locking powered dock featuring GDS® Technology™ for data and charging capabilities for the Zebra ET5x 8.3" & 8.4" series tablets with Rugged Frame via DC 5.5mm power jack and USB Type A connector for adding a peripheral
  • When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is
  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price$277.47
$327.61
/ pc incl. VAT
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
Featuring GDS Technology for data and charging capabilities and a combination lock for theft deterrence, the GDS Vehicle Dock for Zebra ET5x 8.3" & 8.4" series tablets allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type A cable. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM 2-hole diamond bases for device mounting and features a cable management system.
Brand
RAM Mounts
Symbol
RAM-HOL-ZE10PDCLU
Producer code
793442014192
Product Weight
726 g
Hardware Included
(1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(8) Small Cable Ties|(2) Large Cable Ties|(1) USB Type
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
75 x 75 VESA
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Output Connector
USB 2.0 Type A
Transfer Speed
12Mbps
Device or Accessory Type
Tablet
Peripheral Output
500mAh
Zebra ET50 8.3" with rugged frame
Zebra ET51 8.4" with rugged frame
Zebra ET55 8.3" with rugged frame
Zebra ET56 8.4" with rugged frame
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:
  • View details
    Featuring GDS Technology for data and charging capabilities and a combination lock for theft deterrence, the GDS Vehicle Dock for Zebra ET5x 8.3" & 8.4" series tablets allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type A cable. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM 2-hole diamond bases for device mounting and features a cable management system.
    Brand
    RAM Mounts
    Symbol
    RAM-HOL-ZE10PDCLU
    Producer code
    793442014192
    Product Weight
    726 g
    Hardware Included
    (1) Side bracket for accessory mounting and strain relief|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(8) Small Cable Ties|(2) Large Cable Ties|(1) USB Type
    Hole Pattern
    75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
    AMPS 4-Hole
    75 x 75 VESA
    Materials
    High strength composite
    Packaging Type
    Poly Bag
    Input Connector
    5.5mm DC Connector
    Output Connector
    USB 2.0 Type A
    Transfer Speed
    12Mbps
    Device or Accessory Type
    Tablet
    Peripheral Output
    500mAh
  • Compatibility
    Zebra ET50 8.3" with rugged frame
    Zebra ET51 8.4" with rugged frame
    Zebra ET55 8.3" with rugged frame
    Zebra ET56 8.4" with rugged frame
