Part#:UPC:
RAM-GDS-DOCK-SAM88CD2U
793442020513
- Features:
- Spring-loaded vehicle dock designed specifically for the Samsung Galaxy Tab A9+ wrapped in an IntelliSkin® Next Gen protective sleeve

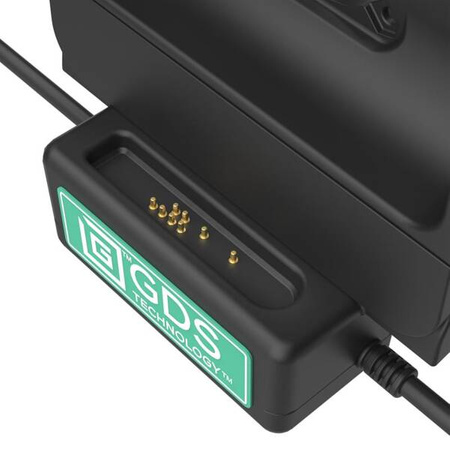

- Incorporated into the bottom docking cup is a USB Type-C Female connector for providing power to the dock and dual USB Type-A for peripheral connection
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty

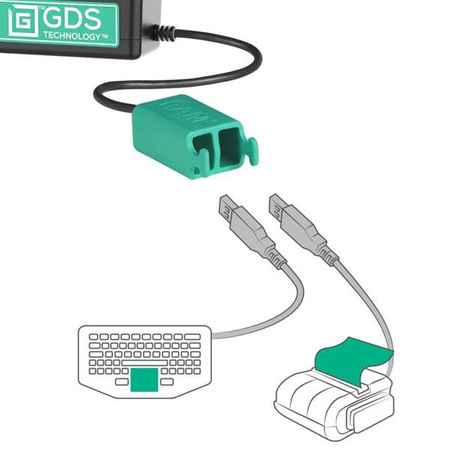

- Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector
Brand
Symbol
RAM-GDS-DOCK-SAM88CD2U
Producer code
793442020513
Series
Hardware Included
(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) USB Type-C to Type-A Cable
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
5V - 12V @ 3A
Power Output
15W
60W Max
Input Connector
USB Type-C|USB Type A for 2 Peripherals
Input Cable Length
215mm
Output Cable Length
215mm
Component parts
RAM-GDS-DOCK-V10PD2U
RAM-GDS-DOCKB-SAM88U
RAM-GDS-DOCKH2U
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CAB-USBC-AMCMU
Product Weight
767 g
Peripheral Output
900mAh (per port)
Samsung Galaxy Tab A9+ with IntelliSkin® Next Gen
Ask a question
Write your opinion
- View details
The GDS Tough-Dock with dual peripheral data is the newest vehicle dock in the GDS Tech line of vehicle docks designed to support the Samsung Galaxy Tab A9+ in an IntelliSkin Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS Tough-Dock supports data syncing and charging capabilities for the Samsung Galaxy Tab A9+. The GDS Tough-Dock is compatible with RAM ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS Tough-Dock is backed by a 3-year warranty. Always Protected. Always Connected. BrandSymbolRAM-GDS-DOCK-SAM88CD2UProducer code793442020513SeriesHardware Included(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) USB Type-C to Type-A CableHole Pattern4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagOutput Voltage5V - 12V @ 3APower Output15W60W MaxInput ConnectorUSB Type-C|USB Type A for 2 PeripheralsInput Cable Length215mmOutput Cable Length215mmComponent partsRAM-GDS-DOCK-V10PD2URAM-GDS-DOCKB-SAM88URAM-GDS-DOCKH2URAM-GDS-CAB-CLAMP1URAM-GDS-CAB-USBC-AMCMUProduct Weight767 gPeripheral Output900mAh (per port) - CompatibilitySamsung Galaxy Tab A9+ with IntelliSkin® Next Gen
