GDS® Tough-Dock™ Locking Vehicle Bundle for Samsung Tab A7 Lite 8.7"
GDS® Tough-Dock™ Locking Vehicle Bundle for Samsung Tab A7 Lite 8.7"
GDS® Tough-Dock™ Locking Vehicle Bundle for Samsung Tab A7 Lite 8.7"
GDS® Tough-Dock™ Locking Vehicle Bundle for Samsung Tab A7 Lite 8.7"
GDS® Tough-Dock™ Locking Vehicle Bundle for Samsung Tab A7 Lite 8.7"
GDS® Tough-Dock™ Locking Vehicle Bundle for Samsung Tab A7 Lite 8.7"

GDS® Tough-Dock™ Locking Vehicle Bundle for Samsung Tab A7 Lite 8.7"

Part#:
RAM-GDS-101LB2-SAM80CP-V7CU
UPC:
793442018343
+ Add to compareAdd to shopping list
  • Features:

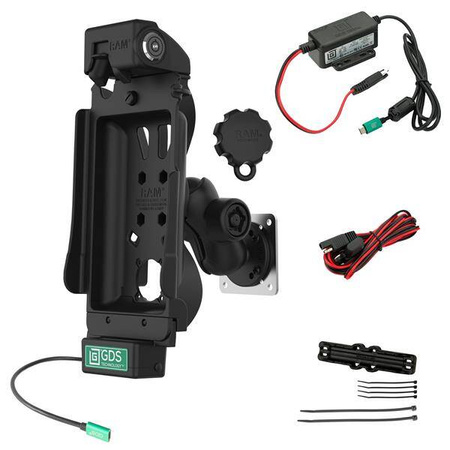

  • Bundle includes locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", hardwire charger with USB-C connector, low-profile double ball mount with C size (1.5") ball and RAM® Pin-Lock™ Knob, backing plate adapter and cable clamp
  • Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
$835.99(Discount 33%)
$558.60
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
Ideal for transportation and large fleet vehicles, this bundle is all you need to pair with your Samsung Tab A7 Lite 8.7". This bundle includes a locking GDS Tough-Dock, IntelliSkin Next Gen for Samsung Tab A7 Lite 8.7", hardwire charger with USB Type-C connector, C Size double ball mount paired with the short arm with RAM Pin-Lock 5-Pin Security Knob, backing plate adapter, and cable clamp. This bundle is ELD compliant, providing a turnkey solution for your fleet.
Brand
RAM Mounts
Symbol
RAM-GDS-101LB2-SAM80CP-V7CU
Producer code
793442018343
Series
GDS Tech IntelliSkin Next Gen
Product Weight
1633 g
Hardware Included
Assembly Hardware|(2) Dock Keys|(1) Knob Key|(1) 2.10" x 2.60" Steel Backing Plate|(4) #8-32 x 1" Screws|(4) #8 Split Lock Washers|(4) #8 Flat Washers|(1) Cable Clamp|(1) Vehicle Hardwire Charger
Socket To Socket Length
2.5"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
Ball Size
C Size (1.5")
Materials
Steel|Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Output Voltage
5-9VDC*
5V - 20V @ 3A
Input Connector
Female USB Type-C
Input Cable Length
1.2 Meters including 2 Pole Flat Marine Connector
Output Cable Length
150mm
Operating Temperature
-20°C to +70°C
Storage Temperature
-40°C to +85°C
Regulatory
Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant
Certifications
CE Certification|E-Mark Certification|RCM Certification|FCC Certification|UL 62368-1 Certificaton
Component parts
RAM-201-BS-KEY5U
RAM-202-225-2U
RAM-202U
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CHARGE-V7CU
RAM-GDS-DOCKL-SAM80CPU
RAM-GDS-SKIN-SAM80-NG
Power Output
60W
Samsung Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen
