New in
Part#:UPC:
RAM-GDS-DOCK-SAM88EU
793442025174
- Features:

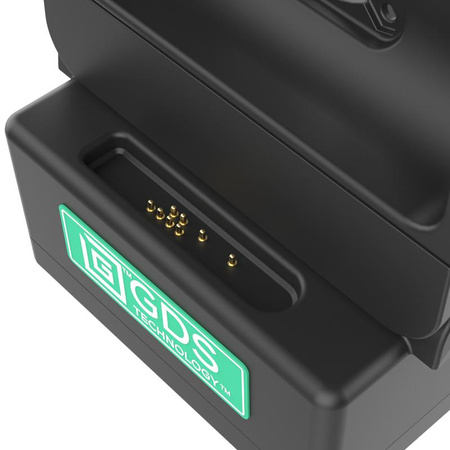

- Spring-loaded key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging
- Designed specifically for the Samsung Galaxy Tab A9+ wrapped in an IntelliSkin® Next Gen protective sleeve
- RJ45 connector provides Power over Ethernet (PoE) to the dock
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty
Brand
Symbol
RAM-GDS-DOCK-SAM88EU
Producer code
793442025174
Series
Product Weight
803 g
Hardware Included
(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
5V - 12V @ 3A
5V - 20V @ 3A Max
PD 3.0: 5V @ 3A 9V @ 2.22A 12V @ 1.67A
Power Output
60W Max
20W Max
Input Connector
RJ45 Ethernet Female
Input Cable Length
1 Meter
Component parts
RAM-GDS-DOCK-V14PU
RAM-GDS-DOCKB-SAM88U
RAM-GDS-DOCKH2U
Transfer Speed
10/100Mbps
Power Specifications
Required Input: POE+ (802.3at) or greater
Samsung Galaxy Tab A9+ with IntelliSkin® Next Gen
Ask a question
Write your opinion
- View details

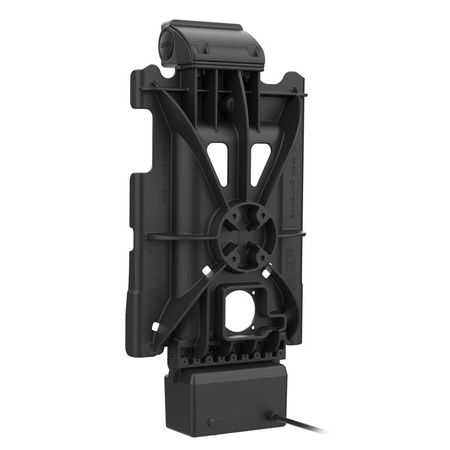

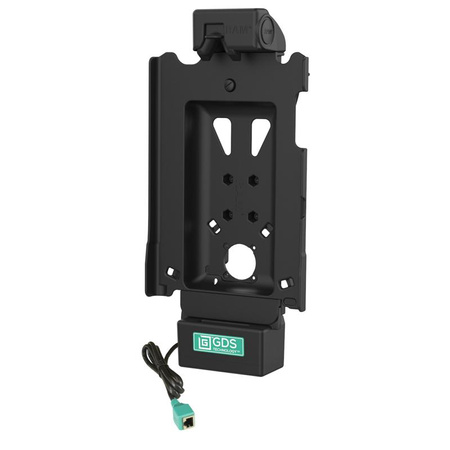

The GDS Tough-Dock with PoE for Samsung Tab A9+ (RAM-GDS-DOCK-SAM88EU) is a vehicle dock designed to support the Samsung Galaxy Tab A9+ in an IntelliSkin Next Gen protective sleeve. Using a RJ45 connector, the GDS Tough-Dock provides Power over Ethernet (PoE) to keep your device connected and protected. The GDS Tough-Dock is compatible with RAM ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS Tough-Dock is backed by a 3-year warranty. Always Protected. Always Connected. BrandSymbolRAM-GDS-DOCK-SAM88EUProducer code793442025174SeriesProduct Weight803 gHardware Included(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock NutsHole Pattern4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagOutput Voltage5V - 12V @ 3A5V - 20V @ 3A MaxPD 3.0: 5V @ 3A 9V @ 2.22A 12V @ 1.67APower Output60W Max20W MaxInput ConnectorRJ45 Ethernet FemaleInput Cable Length1 MeterComponent partsRAM-GDS-DOCK-V14PURAM-GDS-DOCKB-SAM88URAM-GDS-DOCKH2UTransfer Speed10/100MbpsPower SpecificationsRequired Input: POE+ (802.3at) or greater - CompatibilitySamsung Galaxy Tab A9+ with IntelliSkin® Next Gen
