Part#:UPC:
RAM-GDS-DOCKL-V10-OMT3CD2U
793442101601
- Features:
- Vehicle dock with integrated GDS® Technology™ for Apple iPad mini 6 and other shorter tablets offers a universal charging platform for any device wrapped in IntelliSkin® Next Gen
- Type-C port provides high speed charging to the device with new short top cup power and dual USB
- Keyed lock for theft deterrence
- Easy, quick release of your tablet for on-the-go applications
- Backed by a 3-year warranty

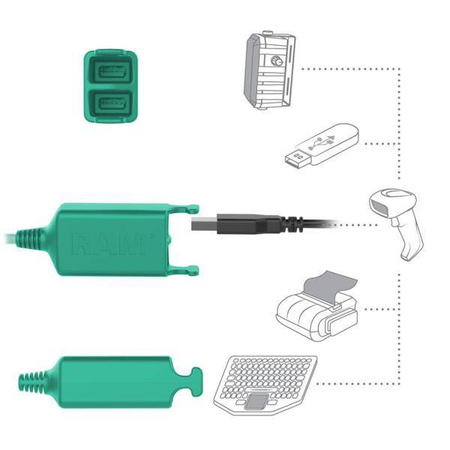

- Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector
Brand
Symbol
RAM-GDS-DOCKL-V10-OMT3CD2U
Producer code
793442101601
Product Weight
739 g
Hardware Included
Assembly Hardware|(2) M4 x 32mm Machine Screws|(2) M4 Nylock Nuts|(2) #8 x 5/8" Sheet Metal Screws|(1) Cable Clamp|(2) Keys
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
5V - 12V @ 3A max|Each Peripheral: 5V @ 500mA max
5V - 12V @ 3A max|Each Peripheral: 5V @ 900mA max
Power Output
15W
Input Connector
USB Type-C|Dual USB Type A for 2 Peripherals
Output Cable Length
.21 Meters
Device or Accessory Type
Tablet
Component parts
RAM-GDS-DOCK-V10PD2U
RAM-GDS-DOCKT-OMT3U
RAM-HOL-TABLBU
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CAB-USBC-AMCMU
Peripheral Output
900mAh (per port)
Ask a question
Write your opinion
- View details

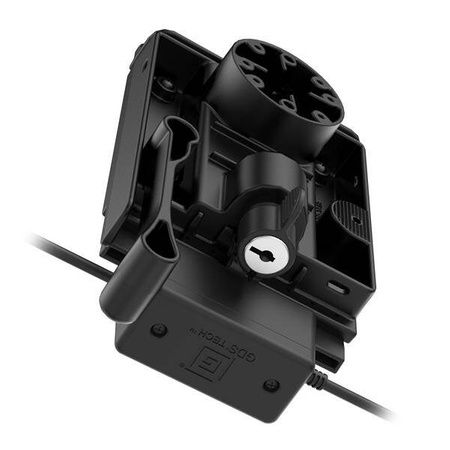

The dual USB Type-C locking vehicle dock for IntelliSkin Next Generation features GDS Technology for Apple iPad mini 6 and other small tablets to enable high speed charging capabilities on the go. This spring-loaded, quick release dock features a keyed lock that offers a secure fit with easy access to your mounted tablet. A bottom dock cup includes 8 pogo pins and a USB Type-C pigtail. Without the need to remove your IntelliSkin Next Gen sleeve from the device, efficiently mount the tablet in the vehicle dock to keep your tablet charged and locked in place. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Always Protected. Always Connected. BrandSymbolRAM-GDS-DOCKL-V10-OMT3CD2UProducer code793442101601Product Weight739 gHardware IncludedAssembly Hardware|(2) M4 x 32mm Machine Screws|(2) M4 Nylock Nuts|(2) #8 x 5/8" Sheet Metal Screws|(1) Cable Clamp|(2) KeysHole Pattern4-Hole AMPS: 1.181" x 1.496"AMPS 4-HoleMaterialsHigh strength compositePackaging TypePoly BagOutput Voltage5V - 12V @ 3A max|Each Peripheral: 5V @ 500mA max5V - 12V @ 3A max|Each Peripheral: 5V @ 900mA maxPower Output15WInput ConnectorUSB Type-C|Dual USB Type A for 2 PeripheralsOutput Cable Length.21 MetersDevice or Accessory TypeTabletComponent partsRAM-GDS-DOCK-V10PD2URAM-GDS-DOCKT-OMT3URAM-HOL-TABLBURAM-GDS-CAB-CLAMP1URAM-GDS-CAB-USBC-AMCMUPeripheral Output900mAh (per port) - Recommended products
