GDS® View™ 13.3" Touch Screen Monitor
Part#:UPC:
RAM-GDS-MON-13-1
793442008481
- Features:
- Two-point capacitive 13.3" touch screen monitor with anti-glare and anti-fingerprint treatment
- MIL-STD-810G 514.5 vibration tested to ensure performance in the most demanding environments
- Includes 75 x 75mm VESA hole pattern for attachment to compatible RAM® ball plates; double ball and socket technology allows for ideal placement
- Backed by a 1-year warranty
Brand
Symbol
RAM-GDS-MON-13-1
Producer code
793442008481
Series
Product Weight
2803 g
2799 g
Hardware Included
(4) #10-24 x 5/8" Machine Screws|(4) #10 Stainless Steel Washers|(4) #10 Lock Washers|(1) HDMI Cable|(1) VGA Cable|(1) USB Type-B to USB Type-A Cable|Vehicle hardwire and cigarette lighter chargers
Monitor Specifications
Screen Size: 13.3"|Anti-glare and Anti-fingerprint treatment applied on LCD|Max Resolution: 1920 x 1080 high resolution|Aspect ratio: 16:9|Tough Panel: 2-point capacitive touch|Audio: (2) 2W Speakers|Brightness: 800nits|Contrast ratio: 1000:1|Red monochro
Hole Pattern
75 x 75mm VESA
75 x 75 VESA
Packaging Type
Retail Box
Input Voltage
10-30V DC
10-30VDC
Ports
(1) Power Input|(1) HDMI|(1) VGA|(1) 3.5mm Audio Output|(1) USB Type-B (Host Input)|(3) USB Type-A (Peripheral Outputs)
Compliance
Meets SAE J-1113|Integrated Short Circuit Protection (SCP)
Certifications
MIL-STD-810G 514.5 Vibration Tested|FCC, CE, IC, RCM, WEEE, e-Mark, ISO 7637-2, and RoHS
MIL-STD-810H 514.5 Vibration Tested|FCC, CE, IC, RCM, WEEE, E-Mark, ISO 7637-2, and RoHS
Device or Accessory Type
Monitor
Regulatory
Meets SAE J-1113|Integrated Short Circuit Protection (SCP)
Ask a question
Write your opinion
- View details

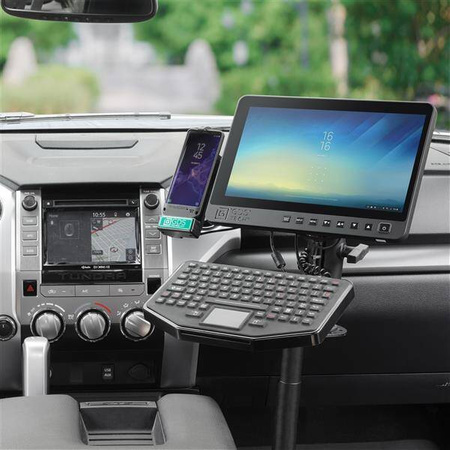

The GDS View 13.3" touchscreen monitor lets you take the PC experience on the road. Featuring VESA hole patterns compatible with the RAM-2461U and RAM-D-2461U mounting plates, create a mobile workstation that takes advantage of the GDS Ecosystem for data sync and charging capabilities. The GDS View monitor has undergone MIL-STD-810G 514.5 vibration testing, ensuring performance in the most demanding environments. This two-point capacitive touchscreen monitor allows you to pinch, zoom, and select and includes an anti-glare and anti-fingerprint treatment. Control buttons on the front of the monitor are easy to access, while a red monochrome night mode helps to reduce eyestrain. In addition, two integrated 2W speakers allow for audio. Includes HDMI, VGA, three USB-A Ports, one USB-B Port, and USB Type-B to USB Type-A cables. BrandSymbolRAM-GDS-MON-13-1Producer code793442008481SeriesProduct Weight2803 g2799 gHardware Included(4) #10-24 x 5/8" Machine Screws|(4) #10 Stainless Steel Washers|(4) #10 Lock Washers|(1) HDMI Cable|(1) VGA Cable|(1) USB Type-B to USB Type-A Cable|Vehicle hardwire and cigarette lighter chargersMonitor SpecificationsScreen Size: 13.3"|Anti-glare and Anti-fingerprint treatment applied on LCD|Max Resolution: 1920 x 1080 high resolution|Aspect ratio: 16:9|Tough Panel: 2-point capacitive touch|Audio: (2) 2W Speakers|Brightness: 800nits|Contrast ratio: 1000:1|Red monochroHole Pattern75 x 75mm VESA75 x 75 VESAPackaging TypeRetail BoxInput Voltage10-30V DC10-30VDCPorts(1) Power Input|(1) HDMI|(1) VGA|(1) 3.5mm Audio Output|(1) USB Type-B (Host Input)|(3) USB Type-A (Peripheral Outputs)ComplianceMeets SAE J-1113|Integrated Short Circuit Protection (SCP)CertificationsMIL-STD-810G 514.5 Vibration Tested|FCC, CE, IC, RCM, WEEE, e-Mark, ISO 7637-2, and RoHSMIL-STD-810H 514.5 Vibration Tested|FCC, CE, IC, RCM, WEEE, E-Mark, ISO 7637-2, and RoHSDevice or Accessory TypeMonitorRegulatoryMeets SAE J-1113|Integrated Short Circuit Protection (SCP) - Recommended products
