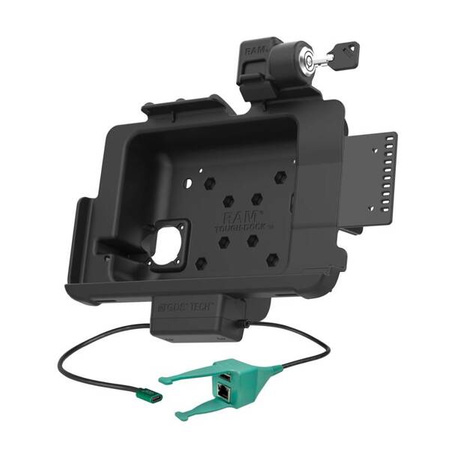

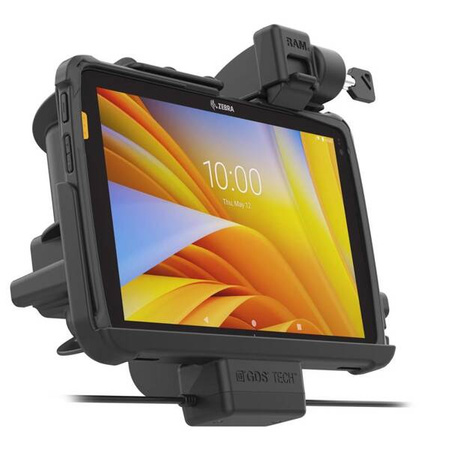

Locking GDS® Dock + USB-A & RJ45 for Zebra ET4x 10" with IntelliSkin®
Part#:UPC:
RAM-GDS-DOCKL-ZE21-RJ45AU
793442022609
- Features:
- Locking powered dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET40 & ET45 10" tablets with IntelliSkin® Next Gen protective sleeve via USB Type-C for power and dual USB Type A & RJ45 (ethernet) connector; MIL-STD 810G S
- When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Brand
Symbol
RAM-GDS-DOCKL-ZE21-RJ45AU
Producer code
793442022609
Series
New
Yes
Product Weight
880 g
Hardware Included
(2) Keys|(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable Ties
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
Type-C Tablets: 5V - 12V @ 3A max|mUSB Tablets: 5V @ 1.5A max
Power Output
15W
Input Connector
USB Type-C (Power In)
Input Cable Length
215mm
Output Connector
(1) USB Type-A & (1) RJ45 Female
Output Cable Length
215mm
Peripheral Output
900mAh
Zebra ET40 10" Tablet with IntelliSkin® Next Gen
Zebra ET45 10" Tablet with IntelliSkin® Next Gen
Ask a question
Write your opinion
- View details
The Locking GDS Power + Dual USB-A & RJ45 Dock for Zebra ET4x 10" with IntelliSkin (RAM-GDS-DOCKL-ZE21-RJ45AU) features GDS Technology for data and charging capabilities and a key lock for theft deterrence, the GDS Vehicle Dock for Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin Next Generation protective sleeve allows you to connects one peripheral and maintain a secure internet connection while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in dual USB Type-A and RJ45 (ethernet) cord. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone or other handheld device. Always Protected. Always Connected. BrandSymbolRAM-GDS-DOCKL-ZE21-RJ45AUProducer code793442022609SeriesNewYesProduct Weight880 gHardware Included(2) Keys|(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable TiesHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagOutput VoltageType-C Tablets: 5V - 12V @ 3A max|mUSB Tablets: 5V @ 1.5A maxPower Output15WInput ConnectorUSB Type-C (Power In)Input Cable Length215mmOutput Connector(1) USB Type-A & (1) RJ45 FemaleOutput Cable Length215mmPeripheral Output900mAh - CompatibilityZebra ET40 10" Tablet with IntelliSkin® Next GenZebra ET45 10" Tablet with IntelliSkin® Next Gen
