New in
Part#:UPC:
RAM-GDS-DOCKL-SAM83CDU
793442936258
- Features:

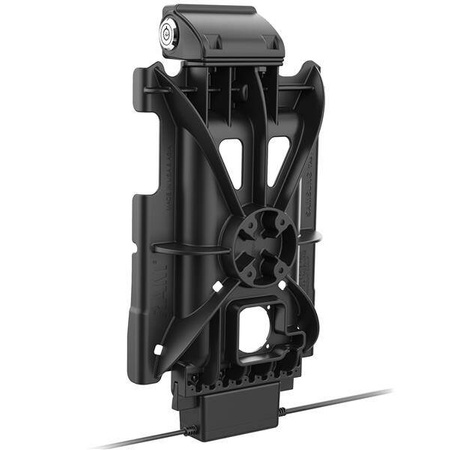

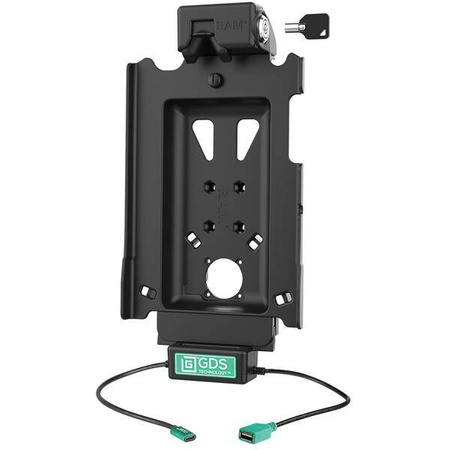

- Spring-loaded key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide charging and connection to one additional USB peripheral
- Designed specifically for the Samsung Galaxy Tab 10.5" SM-X200 wrapped in an IntelliSkin® Next Gen protective sleeve
- Incorporated into the bottom docking cup is a USB Type-C Female connector for providing power to the dock and single USB Type-A for peripheral connection
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty
- Power delivered via USB-C connector; connect a single input device via USB-A connector
Brand
Symbol
RAM-GDS-DOCKL-SAM83CDU
Producer code
793442936258
Product Weight
544 g
Hardware Included
(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(2) Keys
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
Materials
High strength composite
Packaging Type
Poly Bag
Output Voltage
5V - 12V @ 2A
Power Output
15W
Input Connector
USB Type-C|USB Type A for 1 Peripheral
Output Cable Length
.21 Meters
Device or Accessory Type
Tablet
Component parts
RAM-GDS-DOCK-V10PDU
RAM-GDS-DOCKB-SAM83U
RAM-GDS-DOCKLHU
RAM-GDS-DOCKLH2U
Peripheral Output
500mAh
Samsung Galaxy Tab A8 10.5" (SM-X200) with IntelliSkin® Next Gen
Ask a question
Write your opinion
- View details
This key-locking GDS Tough-Dock vehicle dock is designed to support the Samsung Galaxy Tab A8 10.5" SM-X200 in an IntelliSkin Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS Tough-Dock also includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The GDS Tough-Dock is compatible with RAM ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS Tough-Dock is backed by a 3-year warranty. Always Protected. Always Connected. BrandSymbolRAM-GDS-DOCKL-SAM83CDUProducer code793442936258Product Weight544 gHardware Included(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(2) KeysHole Pattern4-Hole AMPS: 1.181" x 1.496"AMPS 4-HoleMaterialsHigh strength compositePackaging TypePoly BagOutput Voltage5V - 12V @ 2APower Output15WInput ConnectorUSB Type-C|USB Type A for 1 PeripheralOutput Cable Length.21 MetersDevice or Accessory TypeTabletComponent partsRAM-GDS-DOCK-V10PDURAM-GDS-DOCKB-SAM83URAM-GDS-DOCKLHURAM-GDS-DOCKLH2UPeripheral Output500mAh - CompatibilitySamsung Galaxy Tab A8 10.5" (SM-X200) with IntelliSkin® Next Gen
