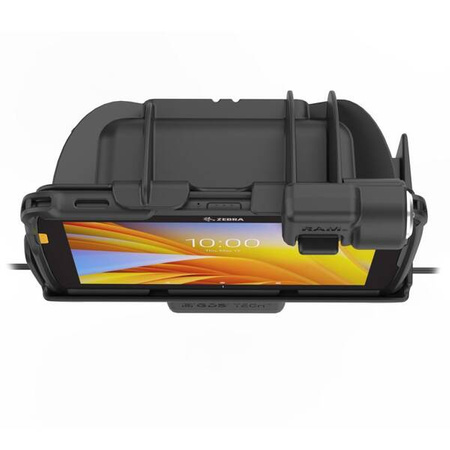

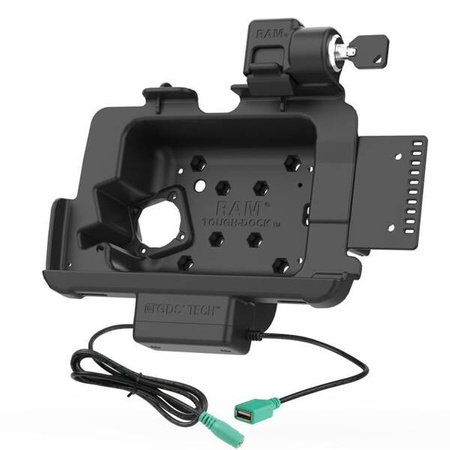

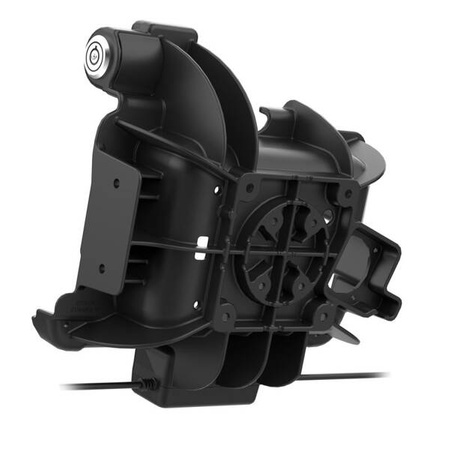

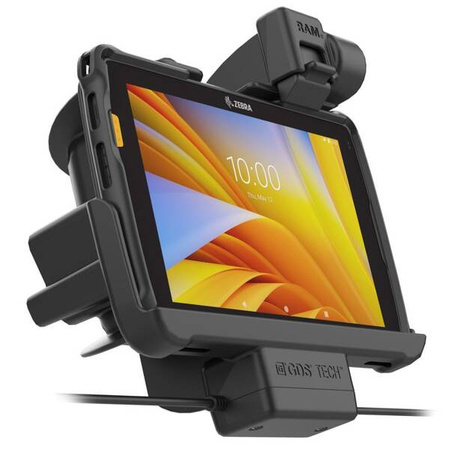

Locking RAM® Tough-Dock™ Power + Data for Zebra ET4x 8" Tablet
Part#:UPC:
RAM-HOL-ZE20PDKLU
793442905384
- Features:
- Locking RAM® Tough-Dock™ with data and charging capabilities for the Zebra ET40 & ET45 8" enterprise tablets with Rugged Frame via DC 5.5mm power jack and USB Type A connector for adding a peripheral; MIL-STD 810G Shock and Vibration tested
- When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is do
- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

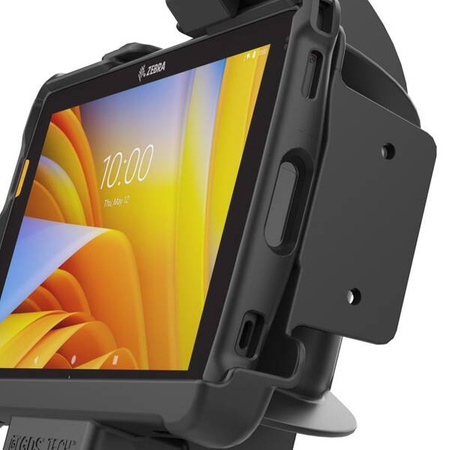

- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Brand
Symbol
RAM-HOL-ZE20PDKLU
Producer code
793442905384
Series
Product Weight
721 g
Hardware Included
(2) Keys|(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable Ties
Hole Pattern
75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Output Connector
USB 2.0 Type A
Output Cable Length
242mm
Transfer Speed
12Mbps
Certifications
CE Certification|E-Mark Certification|RCM Certification|FCC Certification
RoHS|WEEE|CE|UKCA
New
Yes
Peripheral Output
500mAh
Zebra ET40 8" Tablet with Rugged Frame
Zebra ET45 8" Tablet with Rugged Frame
Ask a question
Write your opinion
- View details
Featuring data and charging capabilities and a key lock for theft deterrence, the RAM Tough-Dock for Zebra ET40 & ET45 8" enterprise tablets with Rugged Frame allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone or other handheld device. BrandSymbolRAM-HOL-ZE20PDKLUProducer code793442905384SeriesProduct Weight721 gHardware Included(2) Keys|(1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable TiesHole Pattern75 x 75mm VESA|4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagInput Connector5.5mm DC ConnectorInput Cable Length1 MeterOutput ConnectorUSB 2.0 Type AOutput Cable Length242mmTransfer Speed12MbpsCertificationsCE Certification|E-Mark Certification|RCM Certification|FCC CertificationRoHS|WEEE|CE|UKCANewYesPeripheral Output500mAh - CompatibilityZebra ET40 8" Tablet with Rugged FrameZebra ET45 8" Tablet with Rugged Frame
