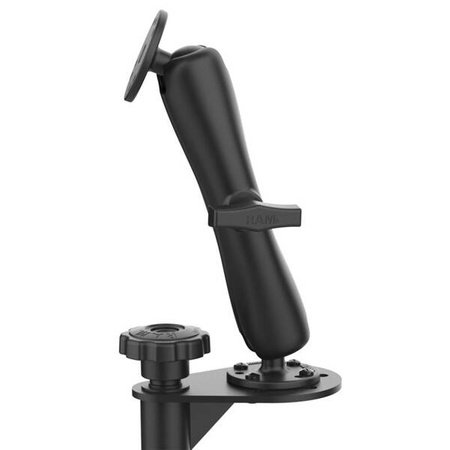

RAM® 12" Upper Flange Pole with Double Ball Mount
Part#:UPC:
RAM-VP-TTMF12-101U-D
793442022302
- Features:
- 12" pole installs onto any RAM® vehicle base with a welded female Tele-Pole™
- Ball and socket mounting system offers shock and vibration damping
- Compatible with any RAM® holders or GDS® docks with a 4 hole AMPS pattern
- Backed by a lifetime warranty
Brand
Symbol
RAM-VP-TTMF12-101U-D
Producer code
793442022302
Series
Product Weight
2390 g
Hardware Included
Assembly Hardware
Product Dimensions
Overall Height: 26.85"
Socket To Socket Length
8"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
Plate Size
2.5" Diameter
Ball Size
C Size (1.5")
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Powder coated steel|Marine-grade aluminum
Packaging Type
Poly Bag
Component parts
RAM-101U-D
Ask a question
Write your opinion
- View details
The RAM 12" Upper Flange Pole with Double Ball Mount (RAM-VP-TTMF12-101U-D) consists of a 12" upper male Tele-Pole with a connection point for the 3-part ball and socket system. The 2.5" round ball features the universal 4-hole AMPS hole pattern to connect any RAM device holder or GDS Dock. The Tele-Pole can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole becomes a rigid support for connecting devices or cradles. The Tele-Pole will connect to any RAM vehicle base with a welded female Tele-Pole. BrandSymbolRAM-VP-TTMF12-101U-DProducer code793442022302SeriesProduct Weight2390 gHardware IncludedAssembly HardwareProduct DimensionsOverall Height: 26.85"Socket To Socket Length8"Hole Pattern4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" DiameterPlate Size2.5" DiameterBall SizeC Size (1.5")Weight CapacityStandard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramssMaterialsPowder coated steel|Marine-grade aluminumPackaging TypePoly BagComponent partsRAM-101U-D - Recommended products
