Part#:UPC:
RAM-134-90
793442013430
Brand
Symbol
RAM-134-90
Producer code
793442013430
Product Weight
1315 g
Product Dimensions
Pipe Diameter: .84" OD
Socket-to-Socket Length
4.66"
Hole Pattern
3-Hole 120-Degree: 1.812" Diameter|See Drawing
AMPS 4-Hole
3-Hole 120 Degree (Small)
1/2'' NPT
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Component parts
RAM-111BU
RAM-201U
RAM-218-1U
RAM-232-90U
RAM-PA8206
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
Ask a question
Write your opinion
- View details

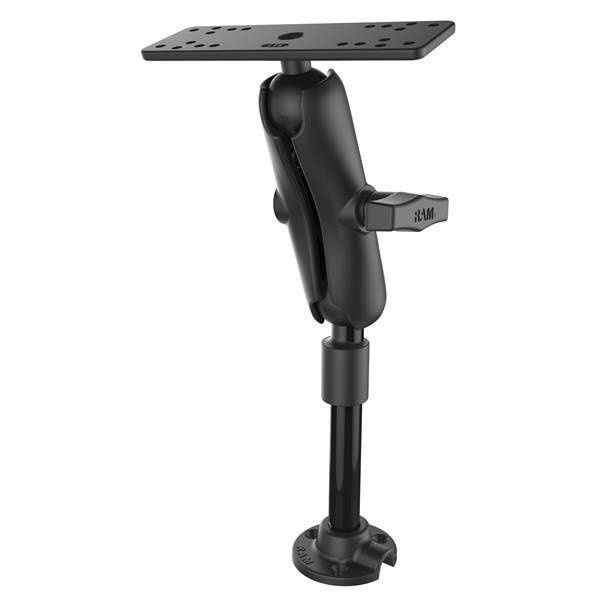

This mount connects directly to then floor, or any mounting surface with the 2.5" diameter base which is at 90, 45 or 0 degrees to the 6" long vertical pole. At the top of the pole is a 1.5" ball attached to the socket of a standard 4 5/8" 1.5" double socket arm. The LapTop tray (NOT included) connects to a 6.25" x 2" Plate with 1.5" ball that joins to the double socket arm. Lap Top Tray (RAM-234-1) IS NOT included with the mount. Mounting hardware for the base is not included. The base unscrews from the pole, allowing the mount to be moved to other locations. BrandSymbolRAM-134-90Producer code793442013430Product Weight1315 gProduct DimensionsPipe Diameter: .84" ODSocket-to-Socket Length4.66"Hole Pattern3-Hole 120-Degree: 1.812" Diameter|See DrawingAMPS 4-Hole3-Hole 120 Degree (Small)1/2'' NPTWeight CapacityStandard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramssMaterialsMarine-grade aluminumPackaging TypePoly BagMounting TypeDrill DownBall & Socket SizeC Size 1.5" (Holds 1814.37 gramss)Component partsRAM-111BURAM-201URAM-218-1URAM-232-90URAM-PA8206Socket To Socket Length4.66"Ball SizeC Size (1.5") - Recommended products
