Part#:UPC:
RAM-463-TRA1U
793442131059
- Features:
- Designed for track mounting systems including the RAM® Tough-Track™; includes 1.5" C size rubber ball with pin-lock and 1/4-20" threaded hole with T-bolt
- Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten
- Made of marine-grade aluminum, stainless steel components for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Brand
Symbol
RAM-463-TRA1U
Producer code
793442131059
Series
Product Weight
118 g
Hardware Included
(1) Friction Washer|(1) 1/4"-20 x 7/8" T-Bolt
Product Dimensions
Plate Diameter: 1.25"|Thread Depth: .875"
T-Bolt Dimensions
.48" x .95"
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum|Stainless steel
Packaging Type
Poly Bag
Mounting Type
Track
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Component parts
RAM-463U
RAP-354TU
T Bolt Dimensions
.48" x .95"
Ball Size
C Size (1.5")
Ask a question
Write your opinion
- View details

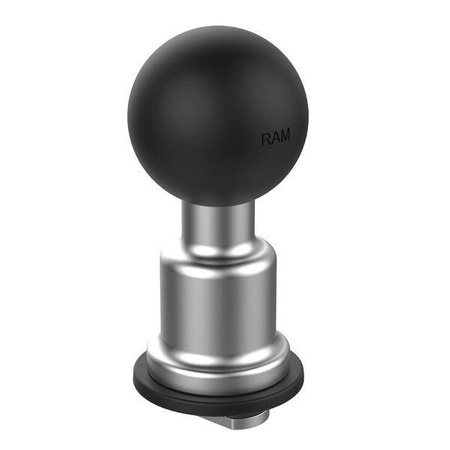

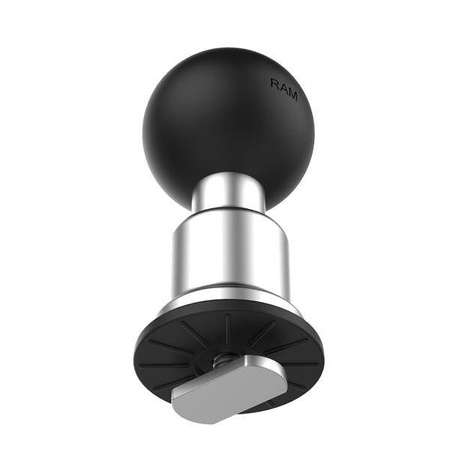

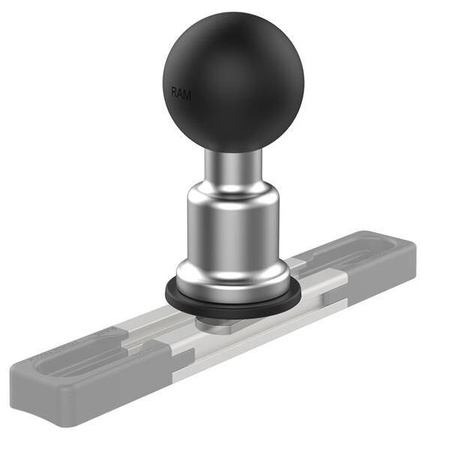

The RAM Track Ball is made up of a C size 1.5" ball molded to a marine-grade aluminum base, a rubber friction washer and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the Track Ball into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball. BrandSymbolRAM-463-TRA1UProducer code793442131059SeriesProduct Weight118 gHardware Included(1) Friction Washer|(1) 1/4"-20 x 7/8" T-BoltProduct DimensionsPlate Diameter: 1.25"|Thread Depth: .875"T-Bolt Dimensions.48" x .95"Weight CapacityStandard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramssMaterialsMarine-grade aluminum|Stainless steelPackaging TypePoly BagMounting TypeTrackBall & Socket SizeC Size 1.5" (Holds 1814.37 gramss)Component partsRAM-463URAP-354TUT Bolt Dimensions.48" x .95"Ball SizeC Size (1.5") - Recommended products
