Part#:UPC:
RAM-B-138-AQ2U
793442902451
Brand
Symbol
RAM-B-138-AQ2U
Producer code
793442902451
Series
Product Weight
603 g
Hardware Included
Assembly Hardware
Internal Dimensions
Width: 2.88"|Height: 5.75"|Depth: 1.188"
Socket-to-Socket Length
3"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
AMPS 4-Hole
3-Hole 120 Degree (Small)
Plate Size
2.5" Diameter
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
GPS
Radio
Component parts
RAM-B-101U
RAM-HOL-AQ2U
Socket To Socket Length
3"
Ball Size
B Size (1")
Most Cell Phones
Ask a question
Write your opinion
- View details

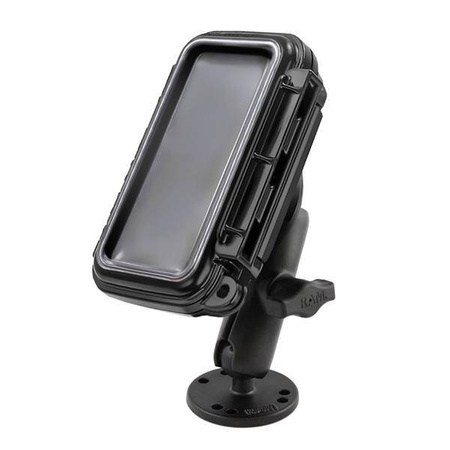

The RAM-B-138-AQ2U consists of a double socket arm, two 2.5" diameter round bases with the universal AMPS hole pattern and sealed enclosed medium size AQUA BOX. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The AQUA BOX case provide sealed enclosure and protection for your handheld device. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. BrandSymbolRAM-B-138-AQ2UProducer code793442902451SeriesProduct Weight603 gHardware IncludedAssembly HardwareInternal DimensionsWidth: 2.88"|Height: 5.75"|Depth: 1.188"Socket-to-Socket Length3"Hole Pattern4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" DiameterAMPS 4-Hole3-Hole 120 Degree (Small)Plate Size2.5" DiameterWeight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|High strength compositePackaging TypePoly BagMounting TypeDrill DownBall & Socket SizeB Size 1" (Holds 907.18 gramss)Socket Arm LengthMedium ArmDevice or Accessory TypeGPSRadioComponent partsRAM-B-101URAM-HOL-AQ2USocket To Socket Length3"Ball SizeB Size (1") - CompatibilityMost Cell Phones
