Part#:UPC:
RAM-B-174-AQ2U
793442908323
Brand
Symbol
RAM-B-174-AQ2U
Producer code
793442908323
Series
Product Weight
231 g
Hardware Included
Assembly Hardware|(2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber
Internal Dimensions
Width: 2.88"|Height: 5.75"|Depth: 1.188"
Clamp Range
.5" - 1.25" diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Brake/Clutch Reservoir
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Diameter Range
.5" - 1.25"
Device or Accessory Type
Phone
GPS
Vehicle Type
Motorcycle
Component parts
RAM-B-174-202U
RAM-HOL-AQ2U
Socket To Socket Length
3"
Ball Size
B Size (1")
Most Cell Phones
Ask a question
Write your opinion
- View details

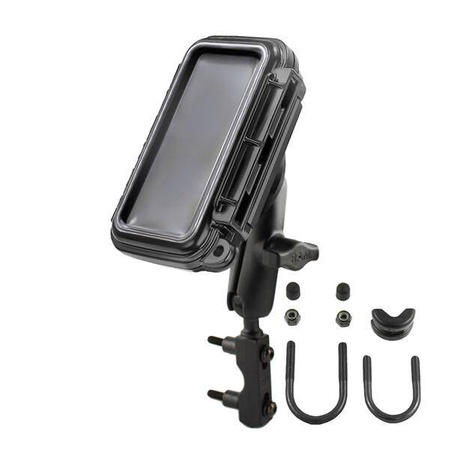

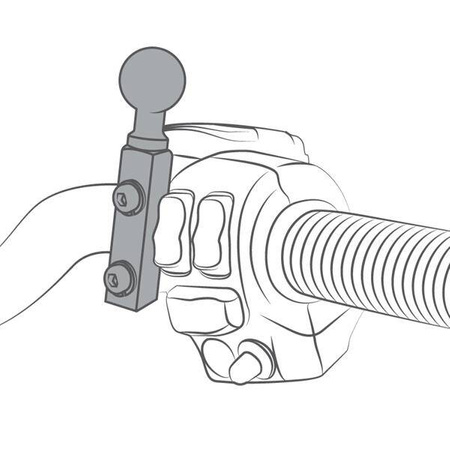

The RAM-B-174-AQ2U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm, 2.5" diameter round bases with the universal AMPS hole pattern and sealed enclosed medium size AQUA BOX. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The AQUA BOX case provide sealed enclosure and protection for your handheld device. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. BrandSymbolRAM-B-174-AQ2UProducer code793442908323SeriesProduct Weight231 gHardware IncludedAssembly Hardware|(2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) RubberInternal DimensionsWidth: 2.88"|Height: 5.75"|Depth: 1.188"Clamp Range.5" - 1.25" diameterSocket-to-Socket Length3"Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|High strength compositePackaging TypePoly BagMounting TypeHandlebar/RailBrake/Clutch ReservoirBall & Socket SizeB Size 1" (Holds 907.18 gramss)Socket Arm LengthMedium ArmDiameter Range.5" - 1.25"Device or Accessory TypePhoneGPSVehicle TypeMotorcycleComponent partsRAM-B-174-202URAM-HOL-AQ2USocket To Socket Length3"Ball SizeB Size (1") - CompatibilityMost Cell Phones
