RAM® Aqua Box® with Brake/Clutch Reservoir Mount for Small Devices
RAM® Aqua Box® with Brake/Clutch Reservoir Mount for Small Devices
RAM® Aqua Box® with Brake/Clutch Reservoir Mount for Small Devices
RAM® Aqua Box® with Brake/Clutch Reservoir Mount for Small Devices
RAM® Aqua Box® with Brake/Clutch Reservoir Mount for Small Devices
RAM® Aqua Box® with Brake/Clutch Reservoir Mount for Small Devices
RAM® Aqua Box® with Brake/Clutch Reservoir Mount for Small Devices
RAM® Aqua Box® with Brake/Clutch Reservoir Mount for Small Devices

RAM® Aqua Box® with Brake/Clutch Reservoir Mount for Small Devices

Part#:
RAM-B-174-AQ3U
UPC:
793442908330
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price$137.89
$155.98
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

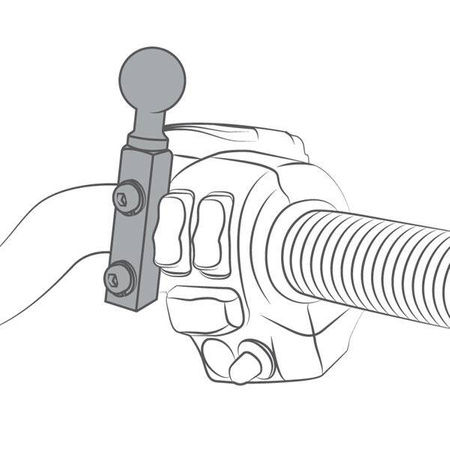

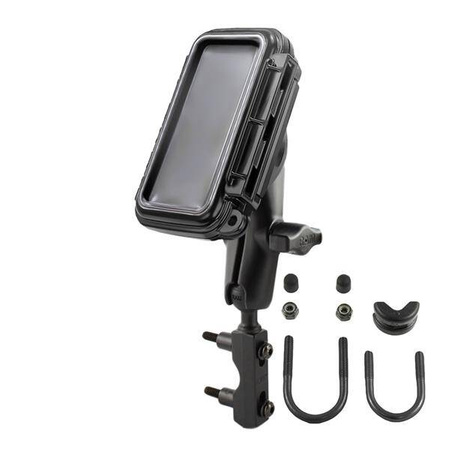

The RAM-B-174-AQ3U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm, 2.5" diameter round bases with the universal AMPS hole pattern and sealed enclosed small size AQUA BOX. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The AQUA BOX case provide sealed enclosure and protection for your handheld device. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.
Brand
RAM Mounts
Symbol
RAM-B-174-AQ3U
Producer code
793442908330
Series
Aqua Box
Product Weight
231 g
Hardware Included
Assembly Hardware|(2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber
Internal Dimensions
Width: 2.38"|Height: 4.63"|Depth: 1.13"
Clamp Range
.5" - 1.25" diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Brake/Clutch Reservoir
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Diameter Range
.5" - 1.25"
Device or Accessory Type
Phone
GPS
Vehicle Type
Motorcycle
Component parts
RAM-B-174-202U
RAM-HOL-AQ3U
Socket To Socket Length
3"
Ball Size
B Size (1")
Small Cell Phones
