Part#:UPC:
RAM-B-231Z-2-366U
793442943140
Brand
Symbol
RAM-B-231Z-2-366U
Producer code
793442943140
Product Weight
345 g
Hardware Included
(1) Strap Clamp Adapter|(2) 1/4"-20 x 1" Machine Screws|(2) 1/4"-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6" Rubber Strip|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) Rubber Caps|(1) U-Bolt Spacer
Clamp Range
U-Bolt: .5" - 1.25" diameter|Strap Clamp: 1.57" - 3.15" diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Thread Pitch
1/4''-20
Socket Arm Length
Medium Arm
Diameter Range
.5" - 1"
Device or Accessory Type
Camera
Vehicle Type
Motorcycle
ATV
UTV
Aircraft
Component parts
RAM-B-201U
RAM-B-231Z-2U
RAP-B-366U
Socket To Socket Length
3"
Ball Size
B Size (1")
Cameras that contain 1/4"-20 Female Threaded Hole
Ask a question
Write your opinion
- View details

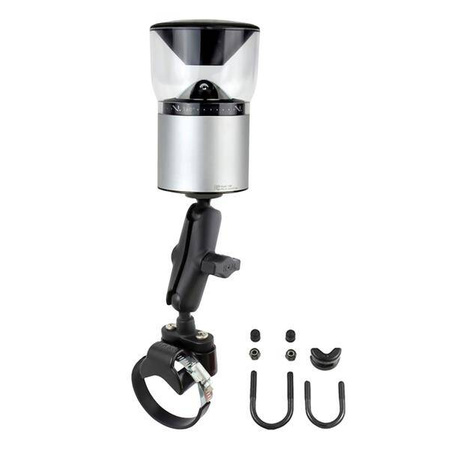

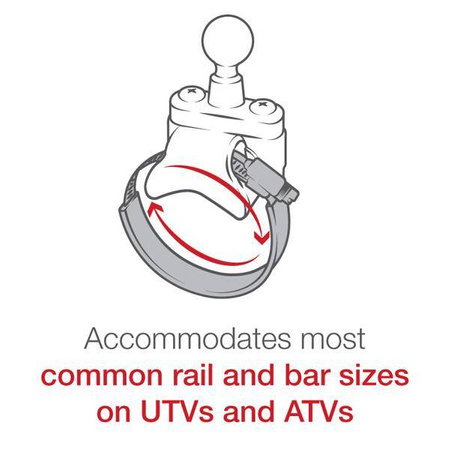

The RAM-B-231Z-2-366U consists of a steel strap base, u-bolt bases, double socket arm and 1" ball, connected to a round plate with 1/4"-20 camera thread. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV's, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATV's using the included hardware. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. BrandSymbolRAM-B-231Z-2-366UProducer code793442943140Product Weight345 gHardware Included(1) Strap Clamp Adapter|(2) 1/4"-20 x 1" Machine Screws|(2) 1/4"-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6" Rubber Strip|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) Rubber Caps|(1) U-Bolt SpacerClamp RangeU-Bolt: .5" - 1.25" diameter|Strap Clamp: 1.57" - 3.15" diameterSocket-to-Socket Length3"Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|High strength compositePackaging TypePoly BagMounting TypeHandlebar/RailBall & Socket SizeB Size 1" (Holds 907.18 gramss)Thread Pitch1/4''-20Socket Arm LengthMedium ArmDiameter Range.5" - 1"Device or Accessory TypeCameraVehicle TypeMotorcycleATVUTVAircraftComponent partsRAM-B-201URAM-B-231Z-2URAP-B-366USocket To Socket Length3"Ball SizeB Size (1") - CompatibilityCameras that contain 1/4"-20 Female Threaded Hole
