RAM® ATV/UTV Rail Mount with 1/4"-20 Camera Adapter - Short Arm
RAM® ATV/UTV Rail Mount with 1/4"-20 Camera Adapter - Short Arm
RAM® ATV/UTV Rail Mount with 1/4"-20 Camera Adapter - Short Arm
RAM® ATV/UTV Rail Mount with 1/4"-20 Camera Adapter - Short Arm

RAM® ATV/UTV Rail Mount with 1/4"-20 Camera Adapter - Short Arm

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$82.23
$95.93
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

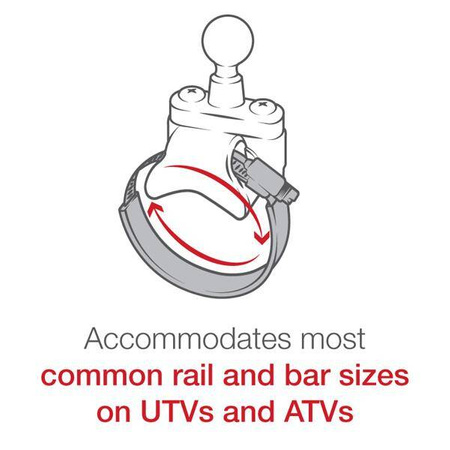

    The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
    Symbol
    RAM-B-231Z-2-A-366U
    Producer code
    793442931994
    Product Weight
    304 g
    Hardware Included
    (1) Strap Clamp Adapter|(2) 1/4"-20 x 1" Machine Screws|(2) 1/4"-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6" Rubber Strip|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) Rubber Caps|(1) U-Bolt Spacer
    Clamp Range
    U-Bolt: .5" - 1.25" diameter|Strap Clamp: 1.57" - 3.15" diameter
    Socket-to-Socket Length
    1.75"
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|High strength composite
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Thread Pitch
    1/4''-20
    Socket Arm Length
    Short Arm
    Diameter Range
    .5" - 1.25"|1.57" - 3.15"
    Device or Accessory Type
    Camera
    Vehicle Type
    Motorcycle
    ATV
    UTV
    Component parts
    RAM-B-201U-A
    RAM-B-231Z-2U
    RAP-B-366U
    Socket To Socket Length
    1.75"
    Ball Size
    B Size (1")
