Part#:UPC:
RAM-B-152-231Z-2
793442911873
Brand
Symbol
RAM-B-152-231Z-2
Producer code
793442911873
Series
Product Weight
1102 g
1270 g
Hardware Included
(1) Strap Clamp Adapter|(2) 1/4"-20 x 1" Machine Screws|(2) 1/4"-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6" Rubber Strip|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) Rubber Caps|(1) U-Bolt Spacer
Bulb Specifications
PAR36|12 Volts DC|9 Watts|1900 Lumens|Sealed Beam|30-Degree Spot Light|Frosted Lens|4500K Color Temp
Clamp Range
U-Bolt: .5" - 1.25" diameter|Strap Clamp: 1.57" - 3.15" diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite|Rubber
Packaging Type
Retail Box
Mounting Type
Handlebar/Rail
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Spotlight
Vehicle Type
ATV
UTV
Component parts
RAM-B-152B
RAM-B-201U
RAM-B-231Z-2U
Socket To Socket Length
3"
Ball Size
B Size (1")
Ask a question
Write your opinion
- View details

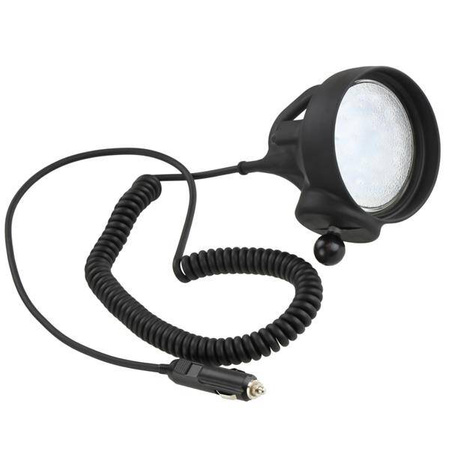

The new RAM Mounts LED Spotlight has been completely redesigned. We have integrated a new LED bulb that yields a brighter and more efficient light that enables you to add safety and lower power draw to your ATV, boat or vehicle. The weather-resistant body shields the 30-degree spot light LED bulb, which yields a wider and brighter range of light, from the elements. The long cord with standard 12v plugin means you can mount the light from nearly any location. The RAM-B-152-231Z-2 consists of a double socket arm, one strap hose clamp and U-bolt base, and the rubber coated RAM LED spotlight. Designed for a clean installation, this mount accommodates most common tubing sizes on UTV's and ATV's. Safely concealing a strap clamp in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. The patented rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment to set your light in the ideal position. BrandSymbolRAM-B-152-231Z-2Producer code793442911873SeriesProduct Weight1102 g1270 gHardware Included(1) Strap Clamp Adapter|(2) 1/4"-20 x 1" Machine Screws|(2) 1/4"-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6" Rubber Strip|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) Rubber Caps|(1) U-Bolt SpacerBulb SpecificationsPAR36|12 Volts DC|9 Watts|1900 Lumens|Sealed Beam|30-Degree Spot Light|Frosted Lens|4500K Color TempClamp RangeU-Bolt: .5" - 1.25" diameter|Strap Clamp: 1.57" - 3.15" diameterSocket-to-Socket Length3"Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|High strength composite|RubberPackaging TypeRetail BoxMounting TypeHandlebar/RailBall & Socket SizeB Size 1" (Holds 907.18 gramss)Socket Arm LengthMedium ArmDevice or Accessory TypeSpotlightVehicle TypeATVUTVComponent partsRAM-B-152BRAM-B-201URAM-B-231Z-2USocket To Socket Length3"Ball SizeB Size (1") - Recommended products
