RAM® Brake/Clutch Reservoir Mount for TomTom Rider 2 + More - Short
RAM® Brake/Clutch Reservoir Mount for TomTom Rider 2 + More - Short
RAM® Brake/Clutch Reservoir Mount for TomTom Rider 2 + More - Short
RAM® Brake/Clutch Reservoir Mount for TomTom Rider 2 + More - Short

RAM® Brake/Clutch Reservoir Mount for TomTom Rider 2 + More - Short

Part#:
RAM-B-174-A-TOM1U
UPC:
793442928499
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price$81.40
$93.10
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

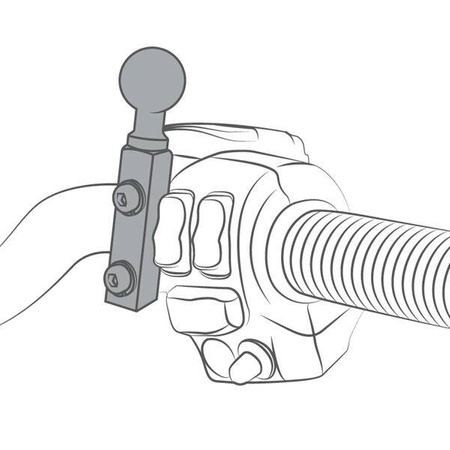

The RAM-B-174-A-TOM1U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, short double socket arm and custom TomTom base adapter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The custom TomTom adapter base connects to the back of the factory cradle that is included with the purchase of the TomTom Rider 2/Urban Rider. The screws that are included with the RAM-B-174-A-TOM1U match up with the threads on the back of the RIDER 2/Urban Rider. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Brand
RAM Mounts
Symbol
RAM-B-174-A-TOM1U
Producer code
793442928499
Product Weight
295 g
Hardware Included
(4) M5 x 12mm Machine Screws|(4) M5 Stainless Steel Lock Washers|(1) M3 Hex Key Wrench|(2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25"
Clamp Range
.5" - 1.25" diameter
Socket-to-Socket Length
1.75"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
AMPS 4-Hole
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Brake/Clutch Reservoir
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Short Arm
Diameter Range
.5" - 1.25"
Device or Accessory Type
GPS
Vehicle Type
Motorcycle
Component parts
RAM-B-201U-A
RAM-B-309-7U
RAM-B-347U-TOM1
Socket To Socket Length
1.75"
Ball Size
B Size (1")
TomTom Rider 2
TomTom Urban Rider
