RAM® Brake/Clutch Reservoir Mount with Garmin VIRB™ Camera Adapter
RAM® Brake/Clutch Reservoir Mount with Garmin VIRB™ Camera Adapter
RAM® Brake/Clutch Reservoir Mount with Garmin VIRB™ Camera Adapter
RAM® Brake/Clutch Reservoir Mount with Garmin VIRB™ Camera Adapter
RAM® Brake/Clutch Reservoir Mount with Garmin VIRB™ Camera Adapter
RAM® Brake/Clutch Reservoir Mount with Garmin VIRB™ Camera Adapter
RAM® Brake/Clutch Reservoir Mount with Garmin VIRB™ Camera Adapter
RAM® Brake/Clutch Reservoir Mount with Garmin VIRB™ Camera Adapter
RAM® Brake/Clutch Reservoir Mount with Garmin VIRB™ Camera Adapter
RAM® Brake/Clutch Reservoir Mount with Garmin VIRB™ Camera Adapter

RAM® Brake/Clutch Reservoir Mount with Garmin VIRB™ Camera Adapter

Part#:
RAM-B-174-GA63U
UPC:
793442943683
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price$84.72
$96.87
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

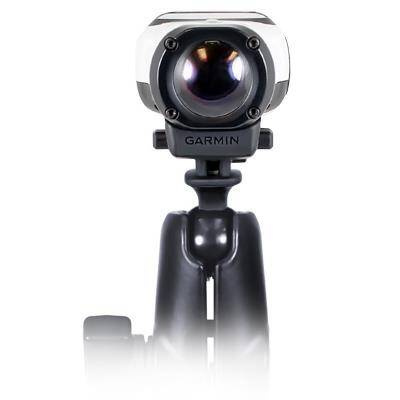

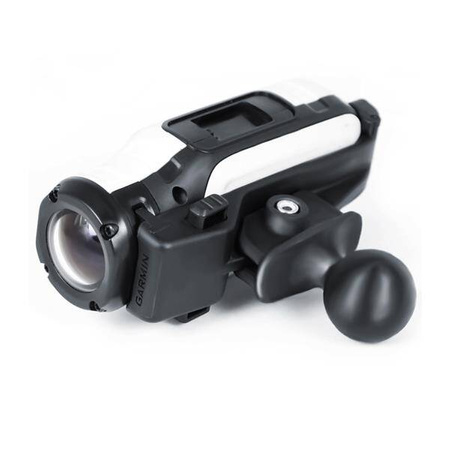

The RAM-B-174-GA63U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and Garmin VIRB camera adapter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The adapter attaches directly to the under-side of the camera, replacing the factory mounting bracket.
Brand
RAM Mounts
Symbol
RAM-B-174-GA63U
Producer code
793442943683
Product Weight
376 g
Hardware Included
Assembly Hardware|(2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber
Clamp Range
.5" - 1.25" diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Brake/Clutch Reservoir
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Diameter Range
.5" - 1.25"
Device or Accessory Type
Camera
Vehicle Type
Motorcycle
Component parts
RAM-B-201U
RAM-B-202U-GA63
RAM-B-309-7U
Socket To Socket Length
3"
Ball Size
B Size (1")
Garmin Virb
