RAM® Brake/Clutch Reservoir Mount with LED Spotlight
RAM® Brake/Clutch Reservoir Mount with LED Spotlight
RAM® Brake/Clutch Reservoir Mount with LED Spotlight
RAM® Brake/Clutch Reservoir Mount with LED Spotlight
RAM® Brake/Clutch Reservoir Mount with LED Spotlight
RAM® Brake/Clutch Reservoir Mount with LED Spotlight
RAM® Brake/Clutch Reservoir Mount with LED Spotlight
RAM® Brake/Clutch Reservoir Mount with LED Spotlight

RAM® Brake/Clutch Reservoir Mount with LED Spotlight

Part#:
RAM-B-174-152U
UPC:
793442910500
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price$214.33
$252.90
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions

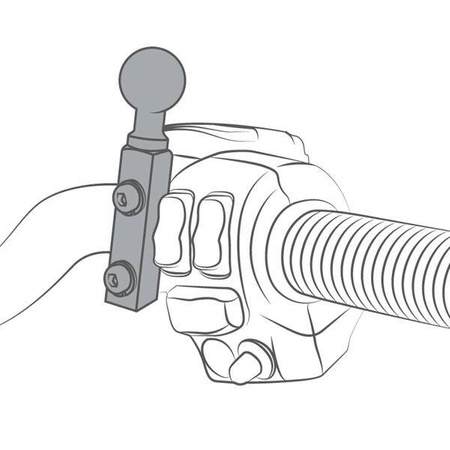

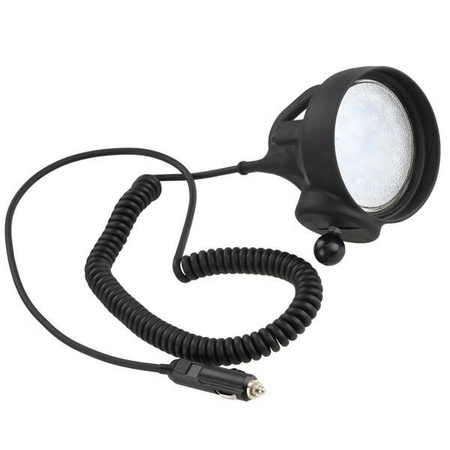

The RAM-B-174-152U consists of a 1" dia. ball rubber coated LED spotlight with brake/clutch reservoir and handlebar/rail mount. The base consists of a 1" diameter rubber ball, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Multiple pivot points, rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
Brand
RAM Mounts
Symbol
RAM-B-174-152U
Producer code
793442910500
Series
LED Spotlight
Product Weight
231 g
Hardware Included
(2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt S
Bulb Specifications
PAR36|12 Volts DC|9 Watts|1900 Lumens|Sealed Beam|30-Degree Spot Light|Frosted Lens|4500K Color Temp
Clamp Range
.5" - 1.25" diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|Rubber
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Brake/Clutch Reservoir
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Diameter Range
.5" - 1.25"
Device or Accessory Type
Spotlight
Vehicle Type
Motorcycle
Component parts
RAM-B-152B
RAM-B-201U
RAM-B-309-7U
Socket To Socket Length
3"
Ball Size
B Size (1")
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:
  • View details
    The RAM-B-174-152U consists of a 1" dia. ball rubber coated LED spotlight with brake/clutch reservoir and handlebar/rail mount. The base consists of a 1" diameter rubber ball, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Multiple pivot points, rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
    Brand
    RAM Mounts
    Symbol
    RAM-B-174-152U
    Producer code
    793442910500
    Series
    LED Spotlight
    Product Weight
    231 g
    Hardware Included
    (2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt S
    Bulb Specifications
    PAR36|12 Volts DC|9 Watts|1900 Lumens|Sealed Beam|30-Degree Spot Light|Frosted Lens|4500K Color Temp
    Clamp Range
    .5" - 1.25" diameter
    Socket-to-Socket Length
    3"
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|Rubber
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Brake/Clutch Reservoir
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Medium Arm
    Diameter Range
    .5" - 1.25"
    Device or Accessory Type
    Spotlight
    Vehicle Type
    Motorcycle
    Component parts
    RAM-B-152B
    RAM-B-201U
    RAM-B-309-7U
    Socket To Socket Length
    3"
    Ball Size
    B Size (1")
