RAM® Chrome Motorcycle Brake/Clutch Reservoir Ball Base
RAM® Chrome Motorcycle Brake/Clutch Reservoir Ball Base
RAM® Chrome Motorcycle Brake/Clutch Reservoir Ball Base
RAM® Chrome Motorcycle Brake/Clutch Reservoir Ball Base
RAM® Chrome Motorcycle Brake/Clutch Reservoir Ball Base

RAM® Chrome Motorcycle Brake/Clutch Reservoir Ball Base

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$73.09
$86.00
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping

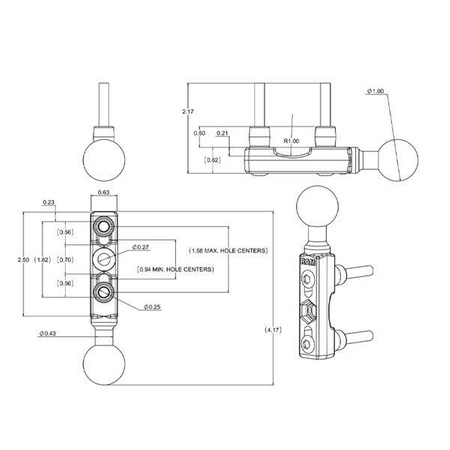

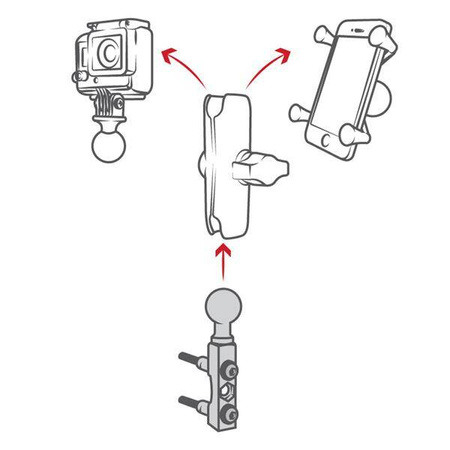

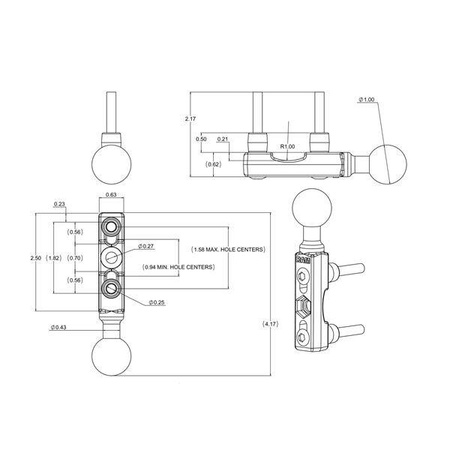

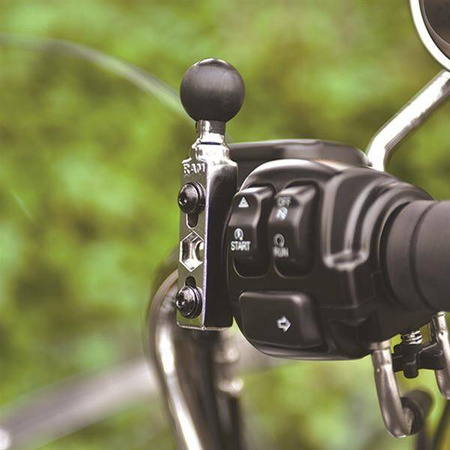

The RAM-B-309-1CHU connects to your handlebar clutch/brake clamp, left or right side, and holds one 1" diameter mounting ball. The chrome base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-1CHU base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". This base allows for an additional mount using the RAM Motorcycle 1" Ball Adapter.
Symbol
RAM-B-309-1CHU
Producer code
793442130939
Warranty
Product Weight
95 g
Hardware Included
(2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Brake/Clutch Reservoir
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Vehicle Type
Motorcycle
Ball Size
B Size (1")
RAM MOUNT
RAM MOUNT
