RAM® Chrome Motorcycle Brake/Clutch Reservoir Mount with Round Plate
RAM® Chrome Motorcycle Brake/Clutch Reservoir Mount with Round Plate
RAM® Chrome Motorcycle Brake/Clutch Reservoir Mount with Round Plate
RAM® Chrome Motorcycle Brake/Clutch Reservoir Mount with Round Plate
RAM® Chrome Motorcycle Brake/Clutch Reservoir Mount with Round Plate
RAM® Chrome Motorcycle Brake/Clutch Reservoir Mount with Round Plate

RAM® Chrome Motorcycle Brake/Clutch Reservoir Mount with Round Plate

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$225.96
$266.61
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions
  • View details

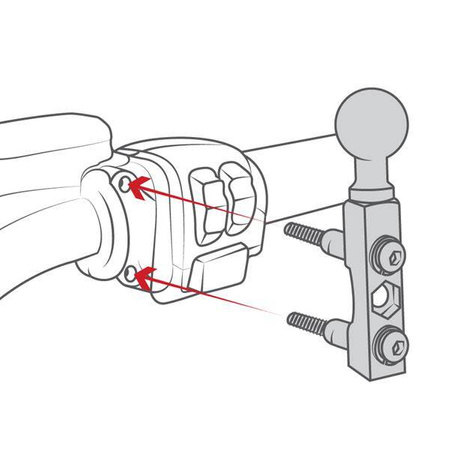

    The RAM-B-174CH-202U consists of a chrome 1" diameter rubber ball, double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1" in diameter and 2.5" diameter round base that contains the universal AMPs hole pattern. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing position.
    Symbol
    RAM-B-174CH-202U
    Producer code
    793442947964
    Product Weight
    354 g
    Hardware Included
    (2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt S
    Clamp Range
    .5" - 1.25" diameter
    Socket-to-Socket Length
    3"
    Hole Pattern
    4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
    AMPS 4-Hole
    3-Hole 120 Degree (Small)
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Brake/Clutch Reservoir
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Medium Arm
    Diameter Range
    .5" - 1.25"
    Vehicle Type
    Motorcycle
    Component parts
    RAM-B-201CHU
    RAM-B-202CHU
    RAM-B-309-1CHU
    Socket To Socket Length
    3"
    Ball Size
    B Size (1")
