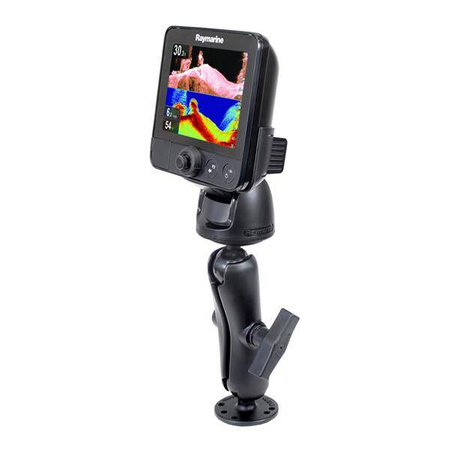

RAM® Double Ball Mount for Raymarine Dragonfly Series
RAM® Double Ball Mount for Raymarine Dragonfly Series
RAM® Double Ball Mount for Raymarine Dragonfly Series
RAM® Double Ball Mount for Raymarine Dragonfly Series

RAM® Double Ball Mount for Raymarine Dragonfly Series

Part#:
RAM-101-RYM1
UPC:
793442941542
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price$109.65
$121.46
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
The RAM-101-RYM1 consists of (2 quantity) 2.5" diameter round bases that contains the universal AMPS hole pattern and standard length double socket arm. Included are (3 quantity) (#8-32 x 3/4" PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-101-RYM1 to the bottom of all Raymarine Dragonfly Sonar/GPS devices. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. This is a drill-down mounting solution.
Brand
RAM Mounts
Symbol
RAM-101-RYM1
Producer code
793442941542
Product Weight
590 g
Hardware Included
(3) #8-32 x 3/4" Machine Screws|(3) #8-32 Nylock Nuts|(3) .312" x .187" Shoulder Washers
Product Dimensions
Overall Height: 7.35"
Socket-to-Socket Length
4.66"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
AMPS 4-Hole
3-Hole 120 Degree (Small)
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum
Packaging Type
Retail Bag
Mounting Type
Drill Down
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Kayak
Component parts
RAM-201U
RAM-202U
RAM-202U-RYM1
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
Raymarine Dragonfly
