RAM® Double Ball Yoke Clamp Mount with Diamond Plate - Short

RAM® Double Ball Yoke Clamp Mount with Diamond Plate - Short

Part#:
RAM-B-121U-A-238
UPC:
793442937620
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price$91.37
$103.97
/ pc incl. VAT
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions

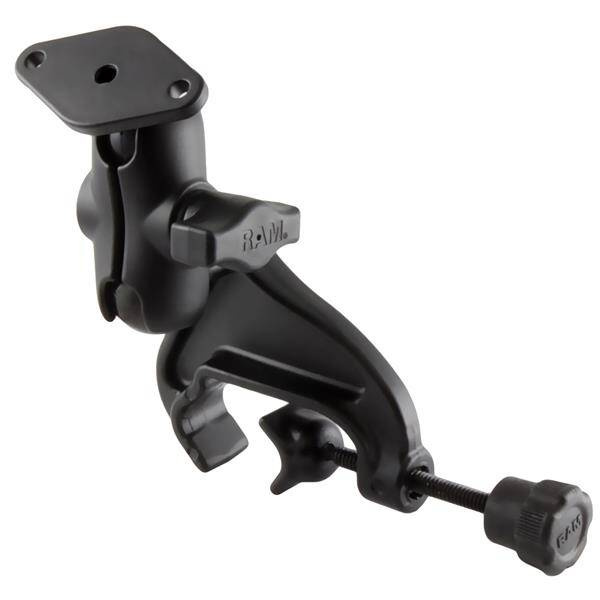

The RAM-B-121U-A-238 consists of a yoke clamp base, SHORT length double socket arm and 2.43" x 1.31" diamond base. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The diamond base has two holes 1.912" from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
Brand
RAM Mounts
Symbol
RAM-B-121U-A-238
Producer code
793442937620
Product Weight
277 g
Hardware Included
Assembly Hardware
Clamp Range
.625" - 1.25"
Socket-to-Socket Length
1.75"
Hole Pattern
2-Hole AMPS: 1.912"
AMPS 2-Hole
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Short Arm
Diameter Range
.625" - 1.25"
Vehicle Type
Aircraft
Component parts
RAM-B-121BU
RAM-B-201U-A
RAM-B-238U
Socket To Socket Length
1.75"
Ball Size
B Size (1")
