RAM® Double U-Bolt Rail Mount for Smaller Rails - C Size Short
RAM® Double U-Bolt Rail Mount for Smaller Rails - C Size Short
RAM® Double U-Bolt Rail Mount for Smaller Rails - C Size Short
RAM® Double U-Bolt Rail Mount for Smaller Rails - C Size Short

RAM® Double U-Bolt Rail Mount for Smaller Rails - C Size Short

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$114.63
$131.39
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions
  • View details

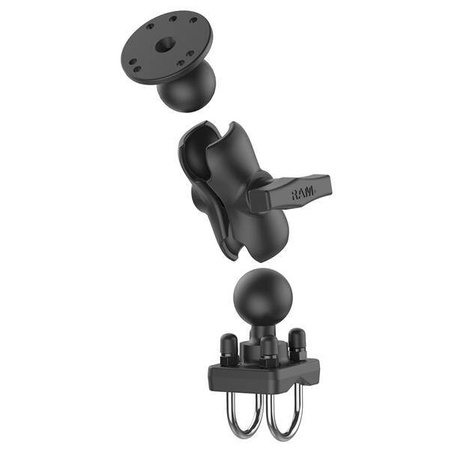

    The RAM-101U-B-235 consists of a short double socket arm, one round 2.5" diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1" to 1.25" in diameter. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
    Symbol
    RAM-101U-B-235
    Producer code
    793442005442
    Product Weight
    558 g
    Hardware Included
    (2) 1/4"-20 U-Bolts for 1" - 1.25" Rails|(4) 1/4"-20 Nylock Nuts|(4) Rubber Caps
    Clamp Range
    1" - 1.25" diameter
    Socket-to-Socket Length
    2.5"
    Hole Pattern
    4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
    AMPS 4-Hole
    3-Hole 120 Degree (Small)
    Weight Capacity
    Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
    Materials
    Marine-grade aluminum
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    C Size 1.5" (Holds 1814.37 gramss)
    Socket Arm Length
    Short Arm
    Diameter Range
    1" - 1.25"
    Vehicle Type
    ATV
    UTV
    Component parts
    RAM-201U-B
    RAM-202U
    RAM-235U
    Socket To Socket Length
    2.5"
    Ball Size
    C Size (1.5")
