Part#:UPC:
RAM-202-153-202U
793442946912
- Features:

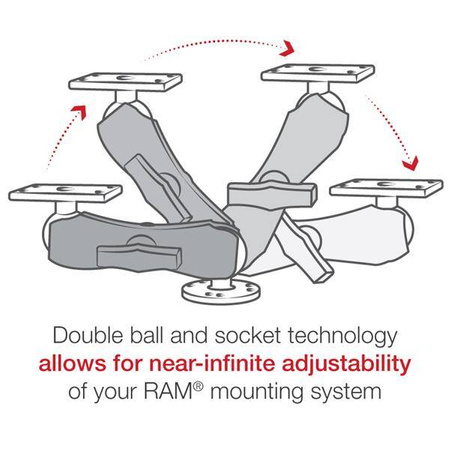

- Complete flat surface, drill-down mounting solution for the Humminbird Helix 5; RAM® Mounts ball and socket technology allows for near-infinite adjustability

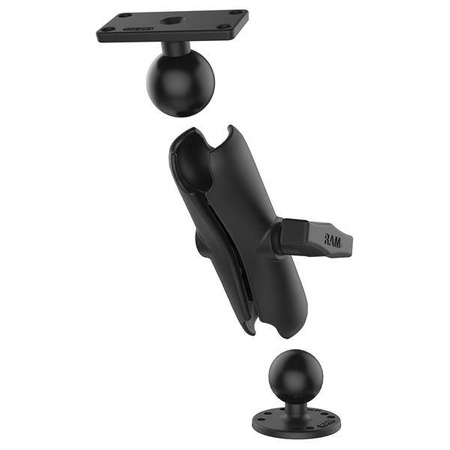

- Includes 2.5" round base with C size 1.5" rubber ball, medium length C size double socket arm, and a 1" x 2.5" rectangle base with C size 1.5" rubber ball that connects to your Humminbird Helix 5
- Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Brand
Symbol
RAM-202-153-202U
Producer code
793442946912
Product Weight
522 g

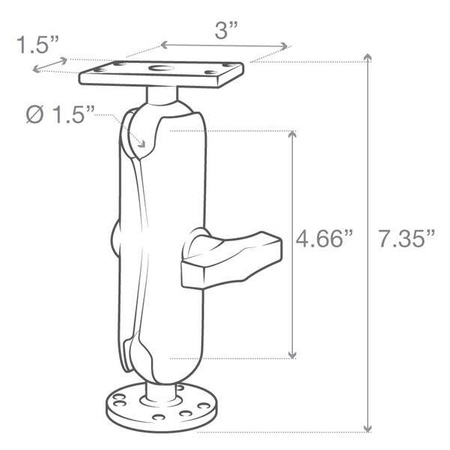

Product Dimensions
Overall Height: 7.35"
Socket-to-Socket Length
4.66"
Hole Pattern
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter|Rectangular Plate: 1" x 2.5"
AMPS 4-Hole
3-Hole 120 Degree (Small)
Plate Size
Top Plate: 1.5" x 3"|Bottom Plate: 2.5" Diameter
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Component parts
RAM-201U
RAM-202U
RAM-202U-153
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
Humminbird HELIX 5 DI
Humminbird HELIX 5 DI GPS
Humminbird HELIX 5 SI GPS
Humminbird HELIX 5 SI GPS KVD
Humminbird HELIX 5 SONAR
Humminbird HELIX 5 SONAR GPS
Humminbird HELIX 5 XD GPS
Ask a question
Write your opinion
- View details

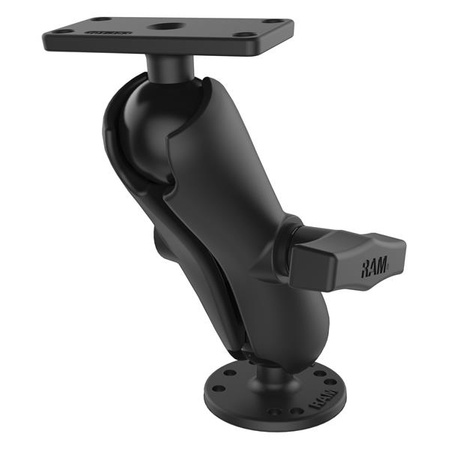

The RAM-202-153-202U powder-coated, marine-grade aluminum Humminbird Helix 5 mount consists of a medium length double socket arm, a 2.5" diameter round base with a 1.5" C size ball, and one 1" x 2.5" rectangular plate with a 1.5" C size ball and 4-hole pattern. Rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle. Compatible with versions of the Humminbird Helix 5. BrandSymbolRAM-202-153-202UProducer code793442946912Product Weight522 gProduct DimensionsOverall Height: 7.35"Socket-to-Socket Length4.66"Hole PatternRound Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter|Rectangular Plate: 1" x 2.5"AMPS 4-Hole3-Hole 120 Degree (Small)Plate SizeTop Plate: 1.5" x 3"|Bottom Plate: 2.5" DiameterWeight CapacityStandard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramssMaterialsMarine-grade aluminumPackaging TypePoly BagMounting TypeDrill DownBall & Socket SizeC Size 1.5" (Holds 1814.37 gramss)Socket Arm LengthMedium ArmDevice or Accessory TypeFishfinderChartplotterVehicle TypePower BoatComponent partsRAM-201URAM-202URAM-202U-153Socket To Socket Length4.66"Ball SizeC Size (1.5") - CompatibilityHumminbird HELIX 5 DIHumminbird HELIX 5 DI GPSHumminbird HELIX 5 SI GPSHumminbird HELIX 5 SI GPS KVDHumminbird HELIX 5 SONARHumminbird HELIX 5 SONAR GPSHumminbird HELIX 5 XD GPS
