Part#:UPC:
RAM-B-101-RYM1
793442941559
Brand
Symbol
RAM-B-101-RYM1
Producer code
793442941559
Product Weight
277 g
Hardware Included
(3) #8-32 x 3/4" Machine Screws|(3) #8-32 Nylock Nuts|(3) .312" x .187" Shoulder Washers
Product Dimensions
Overall Height: 5"
Socket-to-Socket Length
3"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
AMPS 4-Hole
3-Hole 120 Degree (Small)
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum
Packaging Type
Retail Bag
Mounting Type
Drill Down
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Kayak
Component parts
RAM-B-201U
RAM-B-202U
RAM-B-202U-RYM1
Socket To Socket Length
3"
Ball Size
B Size (1")
Raymarine Dragonfly
Ask a question
Write your opinion
- View details

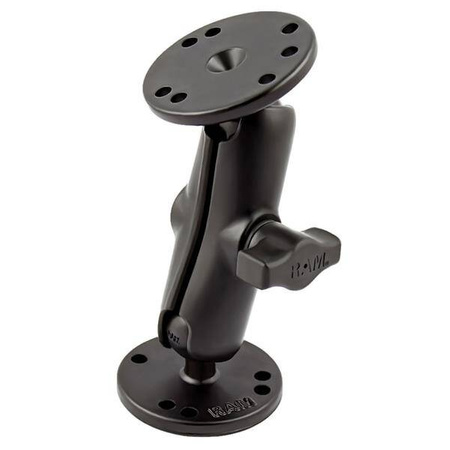

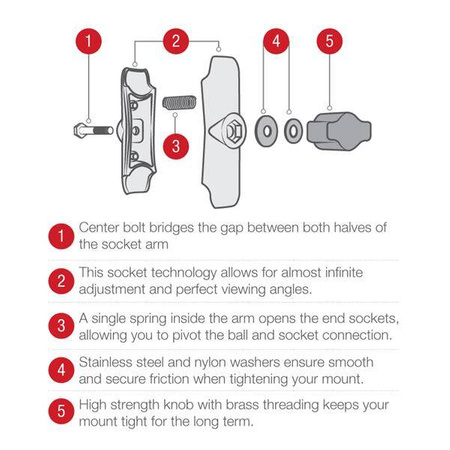

The RAM-B-101-RYM1 consists of (2 quantity) 2.5" diameter round bases that contains the universal AMPS hole pattern and standard length double socket arm. Included are (3 quantity) (#8-32 x 3/4" PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-B-101-RYM1 to the bottom of all Raymarine Dragonfly Sonar/GPS devices. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. This is a drill-down mounting solution. BrandSymbolRAM-B-101-RYM1Producer code793442941559Product Weight277 gHardware Included(3) #8-32 x 3/4" Machine Screws|(3) #8-32 Nylock Nuts|(3) .312" x .187" Shoulder WashersProduct DimensionsOverall Height: 5"Socket-to-Socket Length3"Hole Pattern4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" DiameterAMPS 4-Hole3-Hole 120 Degree (Small)Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminumPackaging TypeRetail BagMounting TypeDrill DownBall & Socket SizeB Size 1" (Holds 907.18 gramss)Socket Arm LengthMedium ArmDevice or Accessory TypeFishfinderChartplotterVehicle TypePower BoatKayakComponent partsRAM-B-201URAM-B-202URAM-B-202U-RYM1Socket To Socket Length3"Ball SizeB Size (1") - CompatibilityRaymarine Dragonfly
