RAM® Drill-Down Double Ball Mount for Raymarine Dragonfly + More
RAM® Drill-Down Double Ball Mount for Raymarine Dragonfly + More
RAM® Drill-Down Double Ball Mount for Raymarine Dragonfly + More
RAM® Drill-Down Double Ball Mount for Raymarine Dragonfly + More

RAM® Drill-Down Double Ball Mount for Raymarine Dragonfly + More

Size
Availability and ShippingQuantity
Sizeuniwersalny
The product is available
Shipment on Tuesday 3 pcs in stock
List price$58.14
$67.56
/ pc incl. VAT
14 days for easy returns
Find out in which store you can check the product and buy it right away
RAM® Drill-Down Double Ball Mount for Raymarine Dragonfly + More
RAM® Drill-Down Double Ball Mount for Raymarine Dragonfly + More
Safe shopping

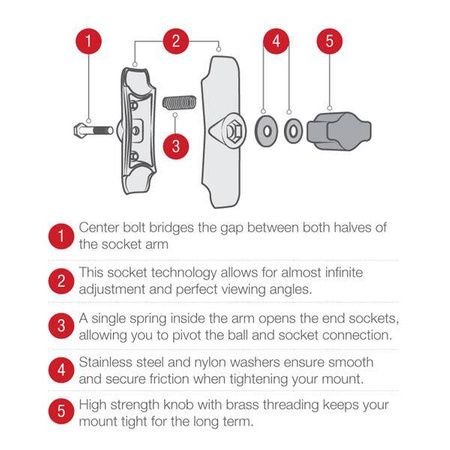

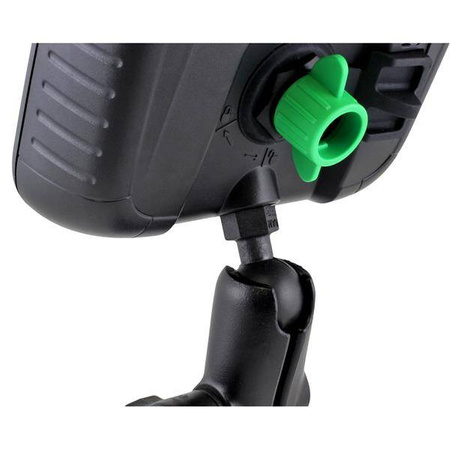

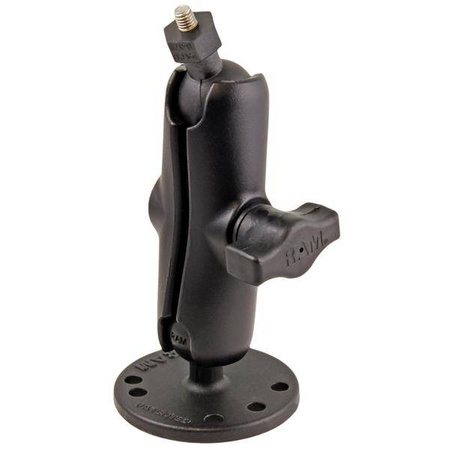

The RAM-B-202-379-M616U consists of a 2.5" diameter round base with the universal AMPS hole pattern, STANDARD size double socket arm and 1" diameter ball, containing a M6 x 30 SS HEX head bolt. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The RAM-B-202-379-M616 reduces the mounting footprint, compared to old dragonfly units that contain a large neck. This mount allows for a seamless marriage of RAM components into your Raymarine system, opening up the ball and socket system and all of our mounting options to you.
Symbol
RAM-B-202-379-M616U
Producer code
793442947995
Warranty
Product Weight
222 g
Socket-to-Socket Length
3"
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
Plate Size
2.5" Diameter
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Thread Pitch
M6-1
Socket Arm Length
Medium Arm
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Kayak
Component parts
RAM-B-201U
RAM-B-202U
RAP-B-379U-M616
Compatibility
Raymarine Dragonfly-4 DV
Raymarine Dragonfly-4 DVS
Raymarine Dragonfly-4 PRO
Raymarine Dragonfly-5 DVS
Raymarine Dragonfly-5 M
Raymarine Dragonfly-5 Pro
Raymarine Dragonfly-7 PRO
Raymarine WiFish
Socket To Socket Length
3"
Ball Size
B Size (1")
