RAM® Drill-Down Marine Electronic Mount
RAM® Drill-Down Marine Electronic Mount
RAM® Drill-Down Marine Electronic Mount
RAM® Drill-Down Marine Electronic Mount
RAM® Drill-Down Marine Electronic Mount
RAM® Drill-Down Marine Electronic Mount

RAM® Drill-Down Marine Electronic Mount

  • Features:
  • Complete flat surface, drill-down mounting solution with an overall height of 7.35"

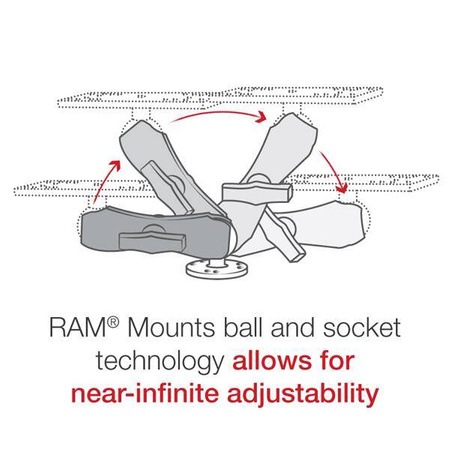

  • RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$107.15
$122.41
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping

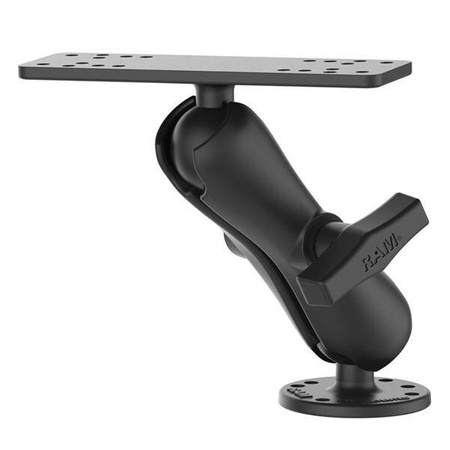

The RAM-111U consists of a medium double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.
Symbol
RAM-111U
Producer code
793442000157
Warranty
Product Weight
572 g
Product Dimensions

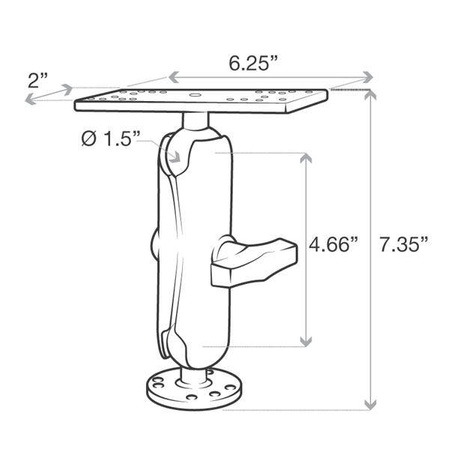

Overall Height: 7.35"
Socket-to-Socket Length
4.66"
Hole Pattern

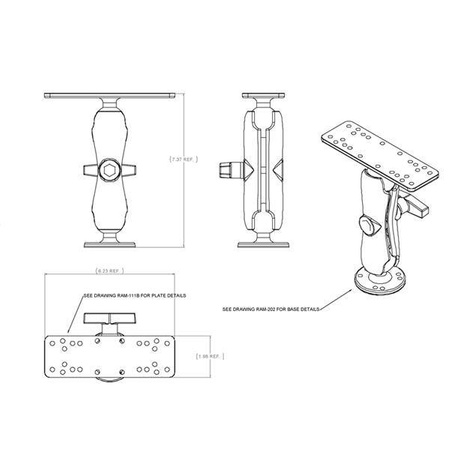

4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter|See Drawing
AMPS 4-Hole
3-Hole 120 Degree (Small)
Plate Size
Rectangular Plate: 6.25" x 2"|Round Plate: 2.5" Diameter
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Kayak
Component parts
RAM-111BU
RAM-201U
RAM-202U
Compatibility
Garmin ECHOMAP Plus 72cv
Garmin ECHOMAP Plus 73cv
Garmin ECHOMAP Plus 74cv
Garmin ECHOMAP Plus 75cv
Garmin ECHOMAP Plus 77cv
Garmin Fishfinders and GPS Chartplotters
Garmin GPSMAP 722
Garmin GPSMAP 722xs
Garmin GPSMAP 723
Garmin GPSMAP 723xsv
Garmin GPSMAP 742
Garmin GPSMAP 742xs
Garmin GPSMAP 743
Garmin GPSMAP 743xsv
Garmin Striker Plus 5cv
Garmin Striker Plus 7cv
Garmin Striker Plus 7sv
Garmin Striker Vivid 5cv
Garmin Striker Vivid 7cv
Garmin Striker Vivid 7sv
Humminbird Fishfinders and GPS Chartplotters
Lowrance Elite FS 7
Lowrance Elite FS 9
Lowrance Fishfinders and GPS Chartplotters
Lowrance HDS Carbon 7
Lowrance HDS LIVE 7
Lowrance Hook Reveal 7 Series
Lowrance Hook Reveal 9 Series
Raymarine Fishfinders and GPS Chartplotters
Garmin ECHOMAP UHD2 5"
Garmin ECHOMAP UHD2 7"
Socket To Socket Length
4.66"
Ball Size
C Size (1.5")
