RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™
RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™
RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™
RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™
RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™
RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™
RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™
RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™
RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™
RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™
New in

RAM® Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar™

Part#:
RAM-TB-FHA3-SW1BU
UPC:
793442027871
+ Add to compareAdd to shopping list
  • Features:
  • Combines a 6" friction hinge arm and a 6" swing arm for precise single-axis pivoting and full 360° horizontal rotation

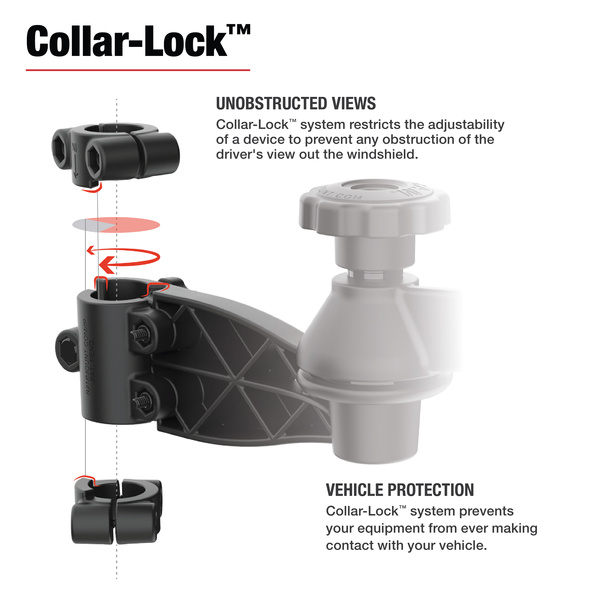

  • Integrated Collar-Lock™ system prevents over-rotation to protect devices and vehicle interiors during adjustment or impact

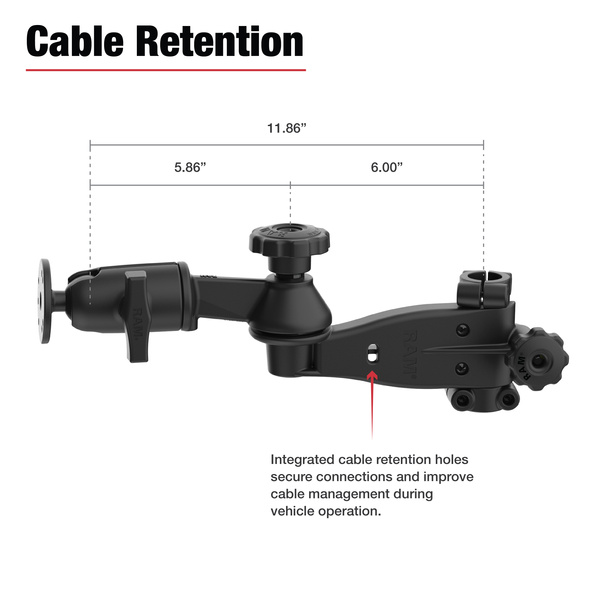

  • Built-in cable retention keeps cords organized
  • Backed by a lifetime warranty
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions

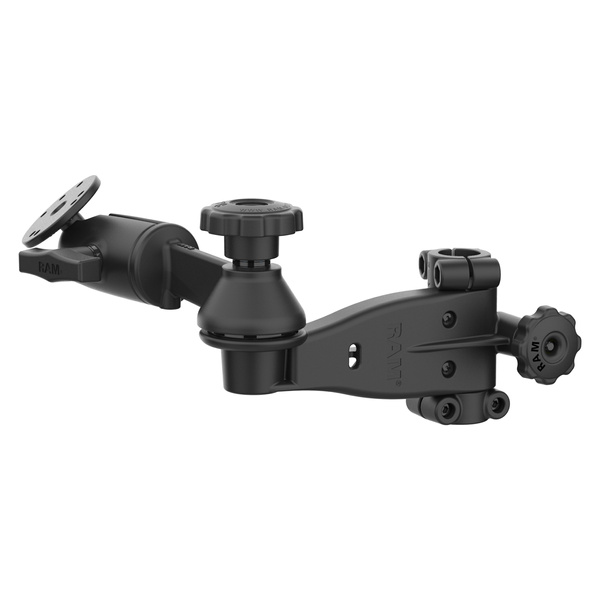

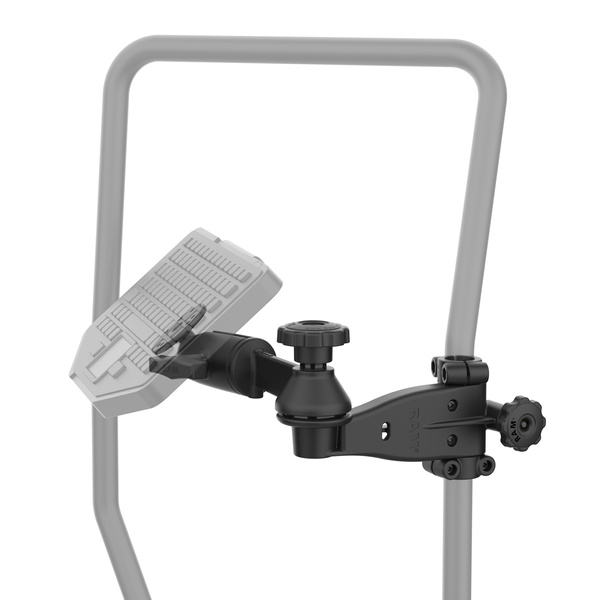

The RAM Friction Hinge 6" Arm & 6" Swing Arm with Ball for Tough-Bar (RAM-TB-FHA3-SW1BU) is a versatile attachment designed to mount a keyboard or other accessories to the RAM Tough-Bar with smooth, controlled adjustability. This system combines a 6" friction hinge arm, a 6" swing arm, and a C size RAM ball for full multi-axis positioning. The friction hinge delivers precise single-axis pivoting, ideal for moving a keyboard side to side, while the swing arm adds 360 of horizontal rotation. The integrated ball and socket connection allows for fine tilt adjustments, letting you position your accessory exactly where you need it or quickly move it aside to access vehicle controls. The built-in cable retention feature keeps cords neatly organized and secured along the arm, preventing snags or strain during adjustment. For added protection, the Collar-Lock system acts as a rotational limiter, blocking over-rotation that could send the mount into the dashboard during movement or impact. Together, these components ensure stable, vibration-resistant performance in demanding environments. Complete with a round ball base for compatibility across the RAM Mounts ecosystem, the Friction Hinge 6" Arm & Swing Arm for Tough-Bar offers rugged flexibility and clean cable management for fleet, commercial, and personal vehicle setups.
Brand
RAM Mounts
Symbol
RAM-TB-FHA3-SW1BU
Producer code
793442027871
Series
Tough-Bar™
New
Yes
Product Weight
943 g
Hardware Included
Assembly Hardware
Product Dimensions
Length: 11.86" (center clamp to center socket)
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
Ball Size
C Size (1.5")
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Component parts
RAM-VB-110-5-DIS1U
