RAM® Handlebar U-Bolt Double Ball Mount 1/4"-20 Threaded Stud - Medium
RAM® Handlebar U-Bolt Double Ball Mount 1/4"-20 Threaded Stud - Medium
RAM® Handlebar U-Bolt Double Ball Mount 1/4"-20 Threaded Stud - Medium
RAM® Handlebar U-Bolt Double Ball Mount 1/4"-20 Threaded Stud - Medium
RAM® Handlebar U-Bolt Double Ball Mount 1/4"-20 Threaded Stud - Medium
RAM® Handlebar U-Bolt Double Ball Mount 1/4"-20 Threaded Stud - Medium

RAM® Handlebar U-Bolt Double Ball Mount 1/4"-20 Threaded Stud - Medium

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$81.40
$93.10
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

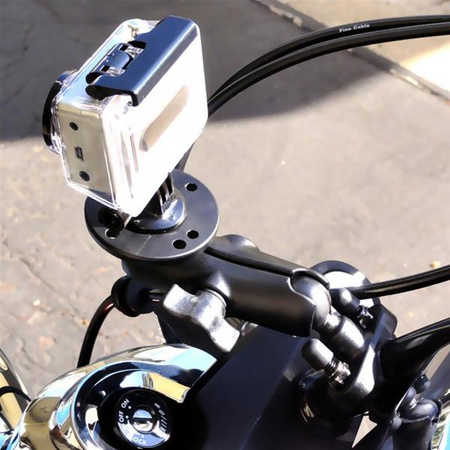

    The RAM-B-149Z-C1U consists of a zinc coated u-bolt base, standard size double socket arm and universal 1/4"-20 thread, centered on a 2.5" diameter plate. The male 1/4" long, 1/4"-20 thread in the middle of the 2.5" diameter plate will connect to the standard female thread found at the bottom of most still and video cameras. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
    Symbol
    RAM-B-149Z-C1U
    Producer code
    793442149108
    Product Weight
    313 g
    Hardware Included
    (1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
    Clamp Range
    .5" - 1.25" diameter
    Socket-to-Socket Length
    3"
    Hole Pattern
    4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Thread Pitch
    1/4''-20
    Socket Arm Length
    Medium Arm
    Diameter Range
    .5" - 1.25"
    Device or Accessory Type
    Camera
    Vehicle Type
    Motorcycle
    Bicycle
    Component parts
    RAM-B-201U
    RAM-B-202AU
    RAM-B-231ZU
    Socket To Socket Length
    3"
    Ball Size
    B Size (1")
