RAM® Handlebar U-Bolt Double Ball Mount for Garmin nuvi 3000 Series
RAM® Handlebar U-Bolt Double Ball Mount for Garmin nuvi 3000 Series
RAM® Handlebar U-Bolt Double Ball Mount for Garmin nuvi 3000 Series
RAM® Handlebar U-Bolt Double Ball Mount for Garmin nuvi 3000 Series

RAM® Handlebar U-Bolt Double Ball Mount for Garmin nuvi 3000 Series

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$88.04
$103.02
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping

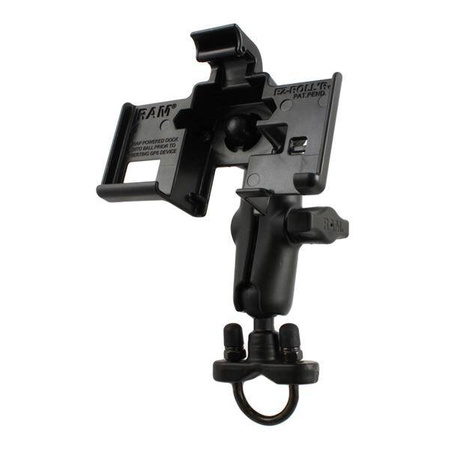

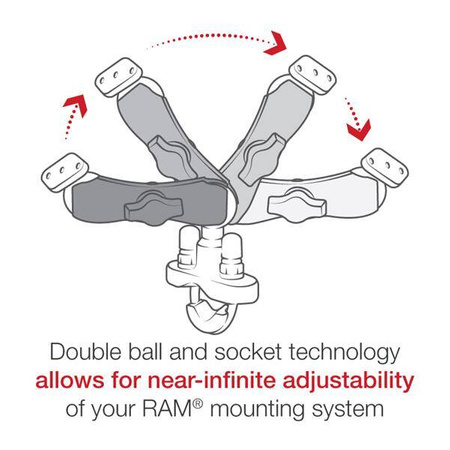

The RAM-B-149Z-GA39U consists of a zinc coated u-bolt base, double socket arm, diamond adapter base and high strength composite cradle for Garmin nuvi 3000 series GPS devices. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. Also included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".
Symbol
RAM-B-149Z-GA39U
Producer code
793442929212
Series
Warranty
Product Weight
308 g
Hardware Included
Assembly Hardware|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
Clamp Range
.5" - 1.25" diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Diameter Range
.5" - 1.25"
Device or Accessory Type
GPS
Vehicle Type
Motorcycle
Dirt Bike
Component parts
RAM-B-149ZU
RAM-HOL-GA39U
Compatibility
Garmin nuvi 3450
Garmin nuvi 3450LM
Garmin nuvi 3490LMT
Garmin nuvi 3750
Garmin nuvi 3760LMT
Garmin nuvi 3760T
Garmin nuvi 3790LMT
Garmin nuvi 3790T
Socket To Socket Length
3"
Ball Size
B Size (1")
