Part#:UPC:
RAM-B-149Z-TO10U
793442931932
Brand
Symbol
RAM-B-149Z-TO10U
Producer code
793442931932
Product Weight
649 g
Hardware Included
Assembly Hardware|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
Clamp Range
.5" - 1.25" diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|High strength composite
Packaging Type
Poly Bag
Mounting Type
Handlebar/Rail
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Diameter Range
.5" - 1.25"
Device or Accessory Type
GPS
Vehicle Type
Motorcycle
Dirt Bike
Component parts
RAM-B-149ZU
RAM-HOL-TO10U
Socket To Socket Length
3"
Ball Size
B Size (1")
TomTom Start 55
TomTom Start 55 M
TomTom Start 55 TM
TomTom XXL 535T
TomTom XXL 540 Series
TomTom XXL 540 WTE Series
TomTom XXL 550 Series
Ask a question
Write your opinion
- View details

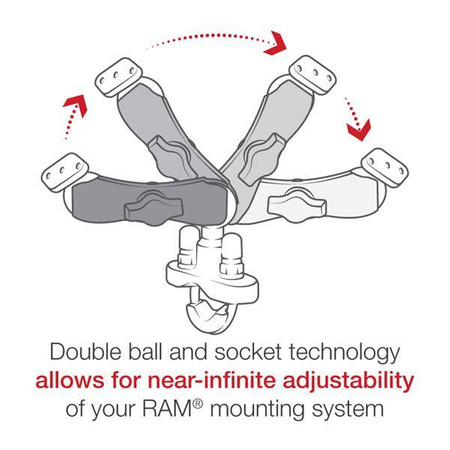

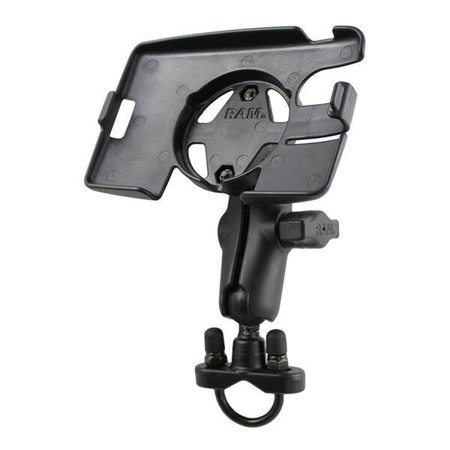

The RAM-B-149Z-TO10U consists of a zinc coated u-bolt base, double socket arm, diamond adapter base and high strength composite cradle for the TomTom XXL series GPS. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. Also included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5". BrandSymbolRAM-B-149Z-TO10UProducer code793442931932Product Weight649 gHardware IncludedAssembly Hardware|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt SpacerClamp Range.5" - 1.25" diameterSocket-to-Socket Length3"Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|High strength compositePackaging TypePoly BagMounting TypeHandlebar/RailBall & Socket SizeB Size 1" (Holds 907.18 gramss)Socket Arm LengthMedium ArmDiameter Range.5" - 1.25"Device or Accessory TypeGPSVehicle TypeMotorcycleDirt BikeComponent partsRAM-B-149ZURAM-HOL-TO10USocket To Socket Length3"Ball SizeB Size (1") - CompatibilityTomTom Start 55TomTom Start 55 MTomTom Start 55 TMTomTom XXL 535TTomTom XXL 540 SeriesTomTom XXL 540 WTE SeriesTomTom XXL 550 Series
