RAM® Handlebar U-Bolt Mount with 1/4"-20 Threaded Stud - Short
RAM® Handlebar U-Bolt Mount with 1/4"-20 Threaded Stud - Short
RAM® Handlebar U-Bolt Mount with 1/4"-20 Threaded Stud - Short
RAM® Handlebar U-Bolt Mount with 1/4"-20 Threaded Stud - Short

RAM® Handlebar U-Bolt Mount with 1/4"-20 Threaded Stud - Short

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$70.60
$82.23
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions
  • View details

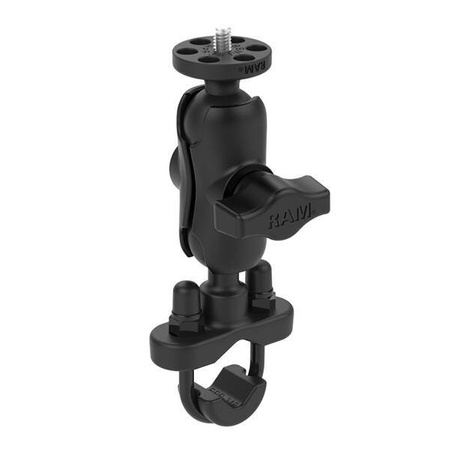

    The RAM-B-231Z-A-366U consists of a zinc coated u-bolt base, SHORT double socket arm and 1" ball, connected to a round plate with 1/4"-20 camera thread. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The composite rail adapter can narrow the rail to a minimum width of 0.5". The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
    Symbol
    RAM-B-231Z-A-366U
    Producer code
    793442932007
    Product Weight
    231 g
    Hardware Included
    (1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
    Clamp Range
    .5" - 1.25" diameter
    Socket-to-Socket Length
    1.75"
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|High strength composite
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Thread Pitch
    1/4''-20
    Socket Arm Length
    Short Arm
    Diameter Range
    .5" - 1.25"
    Device or Accessory Type
    Camera
    Vehicle Type
    Motorcycle
    Bicycle
    Component parts
    RAM-B-201U-A
    RAM-B-231ZU
    RAP-B-366U
    Socket To Socket Length
    1.75"
    Ball Size
    B Size (1")
