Part#:UPC:
RAM-B-152R
793442115226
Brand
Symbol
RAM-B-152R
Producer code
793442115226
Series
Product Weight
1048 g
Hardware Included
(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
Bulb Specifications
PAR36|12 Volts DC|9 Watts|1900 Lumens|Sealed Beam|30-Degree Spot Light|Frosted Lens|4500K Color Temp
Clamp Range
.5" - 1.25" diameter
Socket-to-Socket Length
3"
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum|Rubber
Packaging Type
Retail Bag
Mounting Type
Handlebar/Rail
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Spotlight
Vehicle Type
Motorcycle
Component parts
RAM-B-152B
RAM-B-201U
RAM-B-231ZU
Socket To Socket Length
3"
Ball Size
B Size (1")
Ask a question
Write your opinion
- View details

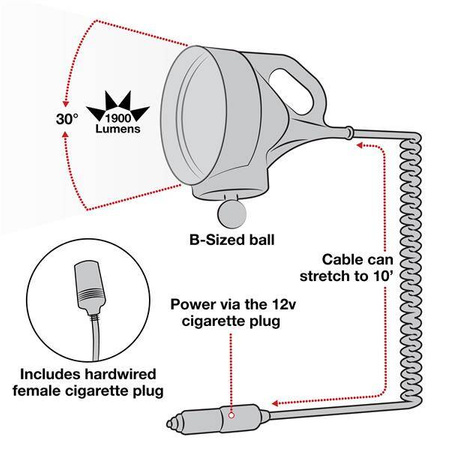

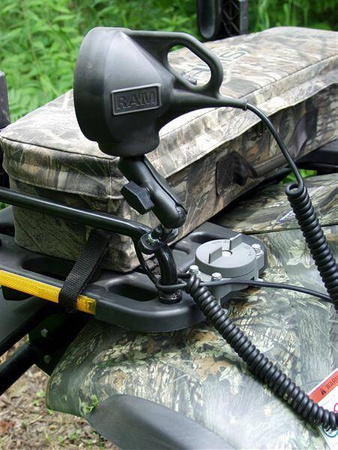

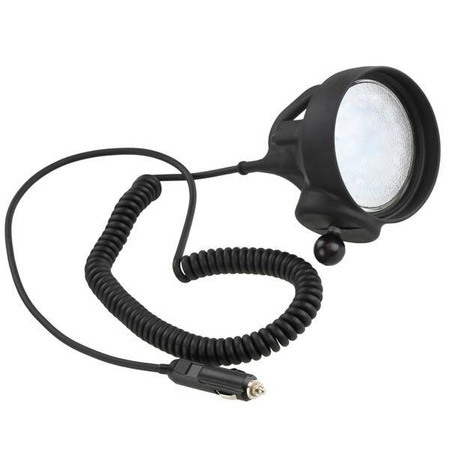

The new RAM Mounts LED Spotlight has been completely redesigned. We have integrated a new LED bulb that yields a brighter and more efficient light that enables you to add safety and lower power draw to your ATV, boat or vehicle. The weather-resistant body shields the 30-degree spot light LED bulb, which yields a wider and brighter range of light, from the elements. The long cord with standard 12v plugin means you can mount the light from nearly any location. The RAM-B-152R consists of a u-bolt base that makes attaching to handlebars, tubing, or railing a breeze. Simple to install and easy to use, the possibilities become endless. Included in this package is hardware for tubing that is 0.50" to 1.25" in diameter. BrandSymbolRAM-B-152RProducer code793442115226SeriesProduct Weight1048 gHardware Included(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt SpacerBulb SpecificationsPAR36|12 Volts DC|9 Watts|1900 Lumens|Sealed Beam|30-Degree Spot Light|Frosted Lens|4500K Color TempClamp Range.5" - 1.25" diameterSocket-to-Socket Length3"Weight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminum|RubberPackaging TypeRetail BagMounting TypeHandlebar/RailBall & Socket SizeB Size 1" (Holds 907.18 gramss)Socket Arm LengthMedium ArmDevice or Accessory TypeSpotlightVehicle TypeMotorcycleComponent partsRAM-B-152BRAM-B-201URAM-B-231ZUSocket To Socket Length3"Ball SizeB Size (1") - Recommended products
