RAM® Horizontal Swing Arm Mount for Lowrance Elite-5 Series
RAM® Horizontal Swing Arm Mount for Lowrance Elite-5 Series
RAM® Horizontal Swing Arm Mount for Lowrance Elite-5 Series
RAM® Horizontal Swing Arm Mount for Lowrance Elite-5 Series

RAM® Horizontal Swing Arm Mount for Lowrance Elite-5 Series

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$256.70
$303.02
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping

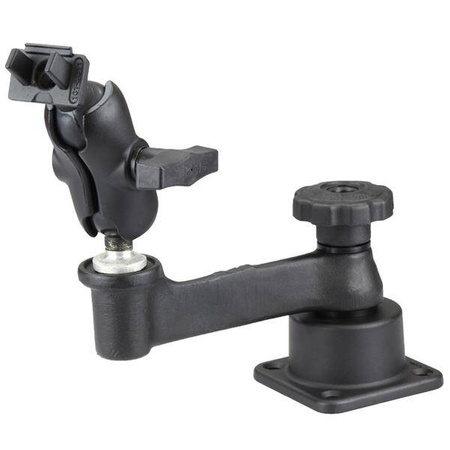

The RAM-109H-2B-B-LO11 consists of a 6" long STRAIGHT swing arm mounted on a horizontal surface mounting base. At the free end of the mount swing arm is a C size 1.5" ball.The connection between the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM ball and socket system. The bolt pivoting point allows a complete 360-degree rotation and the ball and socket system allows a 180-degree vertical pivot with a 360-degree rotation. Included is a short length C size double socket arm, also included is the RAM Lowrance adapter base includes a 1.5" diameter rubber ball and inserts directly to the back of Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti, HOOK-3, HOOK-4, HOOK-5 and MARK-5 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds.
Symbol
RAM-109H-2B-B-LO11
Producer code
793442952142
Warranty
Product Weight
1070 g
Socket-to-Socket Length
3.56"
Hole Pattern
2.5" x 2.5"
Plate Size
3.47" x 3.47"
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Component parts
RAM-109H-2BU
RAM-201U-B
RAM-202U-LO11
Compatibility
Lowrance Elite-5
Lowrance Elite-5 Ti
Lowrance Elite-7 Ti
Lowrance Elite-7 Ti²
Lowrance HOOK-3
Lowrance HOOK-4
Lowrance HOOK-5
Lowrance MARK-5
Simrad GO5 XSE
Socket To Socket Length
3.56"
Ball Size
C Size (1.5")
