RAM® Large Marine Electronics Mount - D Size Medium
Part#:UPC:
RAM-D-111U
793442201110
- Features:
- Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 11.5"
- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Brand
Symbol
RAM-D-111U
Producer code
793442201110
Product Weight
2028 g
2109 g
Hardware Included
(4) .312" x .187" Shoulder Washers
Product Dimensions

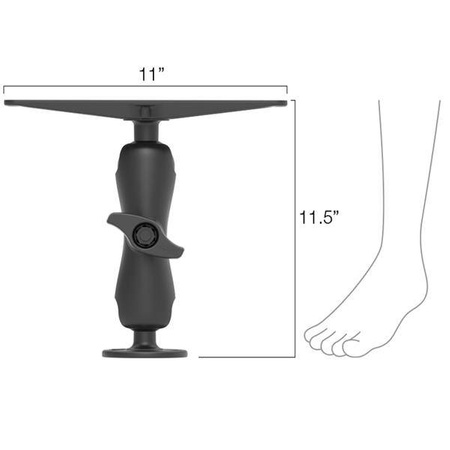

Overall Height: 11.5"
Socket-to-Socket Length
6.88"
Hole Pattern
See Drawings
3-Hole 120 Degree (Large)
Plate Size
Top Plate: 3" x 11"|Bottom Plate: 3.68" Diameter
Weight Capacity
Standard Use: 2721.55 gramss|Heavy-Duty Use: 2267.96 gramss
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
D Size 2.25" (Holds 2721.55 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Component parts
RAM-D-111BU
RAM-D-201U
RAM-D-202U
Socket To Socket Length
6.88"
Ball Size
D Size (2.25")
Garmin ECHOMAP Ultra 122sv
Garmin ECHOMAP Ultra 126sv
Garmin Fishfinders and GPS Chartplotters
Garmin GPSMAP 1020xs
Garmin GPSMAP 1040xs
Garmin GPSMAP 1222/xsv Touch
Garmin GPSMAP 1242xsv/Touch
Garmin GPSMAP 740s
Garmin echoMAP 70DV
Humminbird 800 & 900 Series
Lowrance Elite-12 Ti
Lowrance Elite-12 Ti²
Lowrance Elite-9 CHIRP
Lowrance Elite-9 Ti
Lowrance Elite-9 Ti²
Lowrance Fishfinders and GPS Chartplotters
Lowrance HDS Carbon 12
Lowrance HDS Carbon 9
Lowrance Hook²-12
Raymarine Axiom 7
Raymarine Axiom 9
Raymarine C120
Raymarine Fishfinders and GPS Chartplotters
Ask a question
Write your opinion
- View details

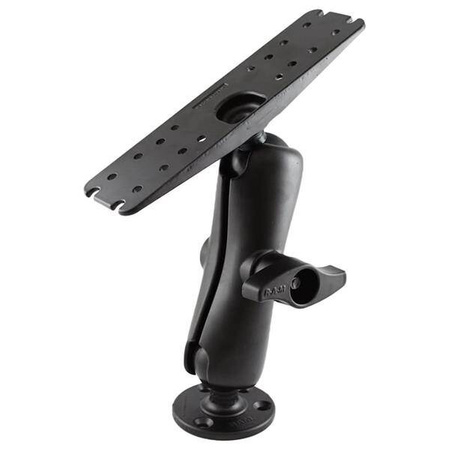

The RAM-D-111U consists of a medium double socket arm, 3.68" diameter round base, and 11" x 3" rectangle base. The round base includes a 2.25" D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25" D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters. BrandSymbolRAM-D-111UProducer code793442201110Product Weight2028 g2109 gHardware Included(4) .312" x .187" Shoulder WashersProduct DimensionsOverall Height: 11.5"Socket-to-Socket Length6.88"Hole PatternSee Drawings3-Hole 120 Degree (Large)Plate SizeTop Plate: 3" x 11"|Bottom Plate: 3.68" DiameterWeight CapacityStandard Use: 2721.55 gramss|Heavy-Duty Use: 2267.96 gramssMaterialsMarine-grade aluminumPackaging TypePoly BagMounting TypeDrill DownBall & Socket SizeD Size 2.25" (Holds 2721.55 gramss)Socket Arm LengthMedium ArmDevice or Accessory TypeFishfinderChartplotterVehicle TypePower BoatComponent partsRAM-D-111BURAM-D-201URAM-D-202USocket To Socket Length6.88"Ball SizeD Size (2.25") - CompatibilityGarmin ECHOMAP Ultra 122svGarmin ECHOMAP Ultra 126svGarmin Fishfinders and GPS ChartplottersGarmin GPSMAP 1020xsGarmin GPSMAP 1040xsGarmin GPSMAP 1222/xsv TouchGarmin GPSMAP 1242xsv/TouchGarmin GPSMAP 740sGarmin echoMAP 70DVHumminbird 800 & 900 SeriesLowrance Elite-12 TiLowrance Elite-12 Ti²Lowrance Elite-9 CHIRPLowrance Elite-9 TiLowrance Elite-9 Ti²Lowrance Fishfinders and GPS ChartplottersLowrance HDS Carbon 12Lowrance HDS Carbon 9Lowrance Hook²-12Raymarine Axiom 7Raymarine Axiom 9Raymarine C120Raymarine Fishfinders and GPS Chartplotters
