RAM® Large Marine Electronics Mount with RAM® Hi-Torq Wrench - Medium
RAM® Large Marine Electronics Mount with RAM® Hi-Torq Wrench - Medium
RAM® Large Marine Electronics Mount with RAM® Hi-Torq Wrench - Medium
RAM® Large Marine Electronics Mount with RAM® Hi-Torq Wrench - Medium
RAM® Large Marine Electronics Mount with RAM® Hi-Torq Wrench - Medium
RAM® Large Marine Electronics Mount with RAM® Hi-Torq Wrench - Medium

RAM® Large Marine Electronics Mount with RAM® Hi-Torq Wrench - Medium

Part#:
RAM-D-111-KNOB9HU
UPC:
793442949661
+ Add to compareAdd to shopping list
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price$357.22
$405.15
/ pc incl. VAT
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Compatibility
  • Recommended products
  • Ask a question
  • Opinions

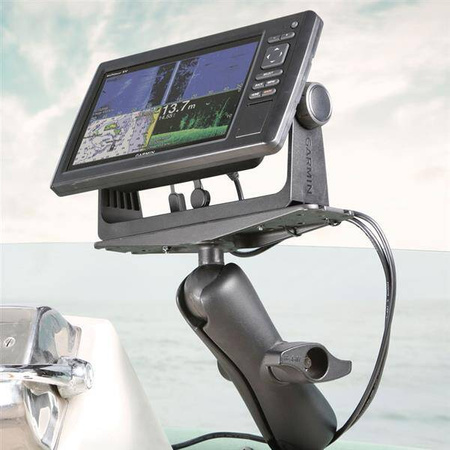

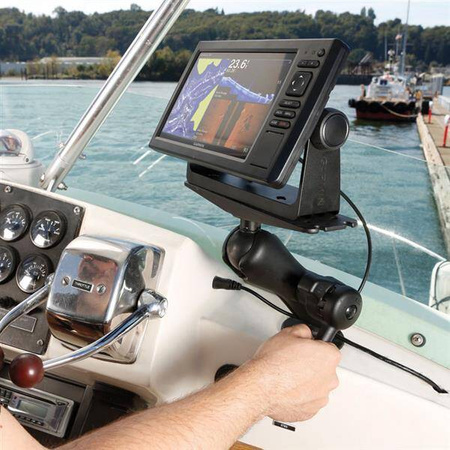

The RAM-D-111-KNOB9HU consists of a 3.68" diameter round base, STANDARD length double socket arm and 11" x 3" rectangular plate. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. Included with this mount is the RAM Hi-Torq Wrench; designed to be used with the knob found on "D" size ball arms and mounts. The wrench matches the shape of the knob and lets you give the arm an extra tight grip. This wrench was originally made for the military when using the RAM mounts in cold weather, and the knob could not be tightened by hand.
Brand
RAM Mounts
Symbol
RAM-D-111-KNOB9HU
Producer code
793442949661
Series
Hi-Torq
Product Weight
2291 g
Hardware Included
(4) .312" x .187" Shoulder Washers
Product Dimensions
Overall Height: 11.5"
Socket-to-Socket Length
6.88"
Hole Pattern
See Drawings
3-Hole 120 Degree (Large)
Plate Size
Top Plate: 3" x 11"|Bottom Plate: 3.68" Diameter
Weight Capacity
Standard Use: 2721.55 gramss|Heavy-Duty Use: 2267.96 gramss
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Drill Down
Ball & Socket Size
D Size 2.25" (Holds 2721.55 gramss)
Socket Arm Length
Medium Arm
Device or Accessory Type
Fishfinder
Chartplotter
Vehicle Type
Power Boat
Component parts
RAM-D-111BU
RAM-D-201U
RAM-D-202U
RAM-KNOB9HU
Socket To Socket Length
6.88"
Ball Size
D Size (2.25")
Garmin ECHOMAP Ultra 122sv
Garmin ECHOMAP Ultra 126sv
Garmin Fishfinders and GPS Chartplotters
Garmin GPSMAP 1020xs
Garmin GPSMAP 1040xs
Garmin GPSMAP 1222/xsv Touch
Garmin GPSMAP 1242xsv/Touch
Garmin GPSMAP 740s
Garmin echoMAP 70DV
Humminbird 800 & 900 Series
Lowrance Elite-12 Ti
Lowrance Elite-12 Ti²
Lowrance Elite-9 CHIRP
Lowrance Elite-9 Ti
Lowrance Elite-9 Ti²
Lowrance Fishfinders and GPS Chartplotters
Lowrance HDS Carbon 12
Lowrance HDS Carbon 9
Lowrance Hook²-12
Raymarine Axiom 7
Raymarine Axiom 9
Raymarine C120
Raymarine Fishfinders and GPS Chartplotters
