RAM® Large Strap Hose Clamp Base for Beechcraft Bonanza Airplanes
RAM® Large Strap Hose Clamp Base for Beechcraft Bonanza Airplanes
RAM® Large Strap Hose Clamp Base for Beechcraft Bonanza Airplanes
RAM® Large Strap Hose Clamp Base for Beechcraft Bonanza Airplanes
RAM® Large Strap Hose Clamp Base for Beechcraft Bonanza Airplanes
RAM® Large Strap Hose Clamp Base for Beechcraft Bonanza Airplanes

RAM® Large Strap Hose Clamp Base for Beechcraft Bonanza Airplanes

Size
Availability and ShippingQuantity
Sizeuniwersalny
The product is available
Shipment on Wednesday 1 pc in stock
List price$37.37
$42.03
/ pc incl. VAT
14 days for easy returns
Find out in which store you can check the product and buy it right away
RAM® Large Strap Hose Clamp Base for Beechcraft Bonanza Airplanes
RAM® Large Strap Hose Clamp Base for Beechcraft Bonanza Airplanes
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions
  • View details

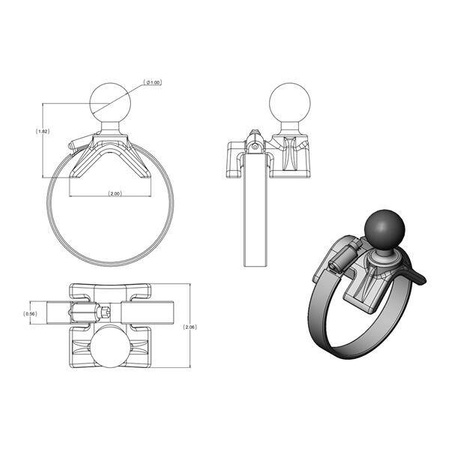

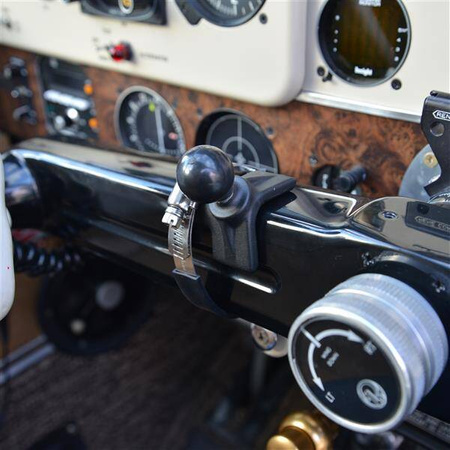

    The RAM-B-108B-STRAP40U accommodates rails from 2" to a maximum of 3" in diameter. To mount the RAM-B-108B-STRAP40U base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The RAM-B-108B-STRAP40U is an alternative mounting base for aircraft such as the Bonanza or Beech with a "throw over yoke".
    Symbol
    RAM-B-108B-STRAP40U
    Producer code
    793442921575
    Product Weight
    136 g
    118 g
    Hardware Included
    (1) #40 Worm Drive Strap Clamp|(1) 6" Rubber Strip
    Clamp Range
    2" - 3" diameter
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Diameter Range
    1" - 2.1"
    Vehicle Type
    ATV
    UTV
    Aircraft
    Component parts
    RAM-STRAP40
    Ball Size
    B Size (1")
