RAM® Level Cup™ 16oz Drink Holder with Brake/Clutch Reservoir Base
RAM® Level Cup™ 16oz Drink Holder with Brake/Clutch Reservoir Base
RAM® Level Cup™ 16oz Drink Holder with Brake/Clutch Reservoir Base
RAM® Level Cup™ 16oz Drink Holder with Brake/Clutch Reservoir Base
RAM® Level Cup™ 16oz Drink Holder with Brake/Clutch Reservoir Base
RAM® Level Cup™ 16oz Drink Holder with Brake/Clutch Reservoir Base

RAM® Level Cup™ 16oz Drink Holder with Brake/Clutch Reservoir Base

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$86.39
$102.08
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions
  • View details

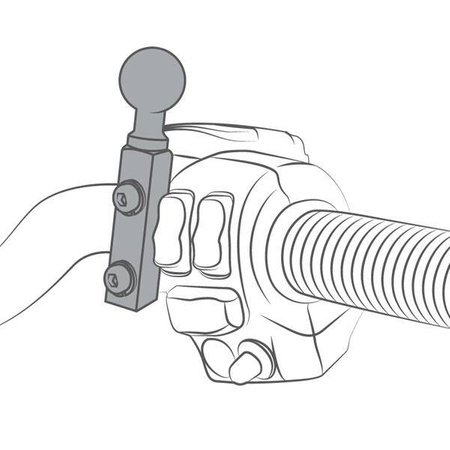

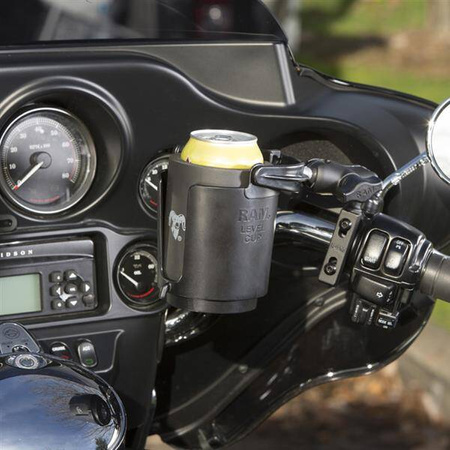

    The RAM-B-174-A-132U consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, short length double socket arm and Level Cup self leveling cup holder. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Take a corner as hard as you like, this holder is ready to ride. The integrated eyelet and hook provide an optional tethering function, securing any small or open container in any harsh environment. Compatible with any cups, cans, bottles or mugs ranging from 2.5" to 3.5" diameter.
    Symbol
    RAM-B-174-A-132U
    Producer code
    793442952593
    Series
    Product Weight
    499 g
    Hardware Included
    (2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt S
    Drink Size
    12-16 oz
    Clamp Range
    .5" - 1.25" diameter
    Socket-to-Socket Length
    1.75"
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum|High strength composite
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Brake/Clutch Reservoir
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Short Arm
    Diameter Range
    .5" - 1.25"
    Device or Accessory Type
    Drink
    Vehicle Type
    Motorcycle
    Component parts
    RAM-B-132BU
    RAM-B-201U-A
    RAM-B-309-7U
    Socket To Socket Length
    1.75"
    Ball Size
    B Size (1")
