New in
Part#:UPC:
RAM-HOL-SAM58PD2TU
793442016776
- Features:
- Form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active3 wrapped in a Samsung OEM protective case or RAM® Skin™

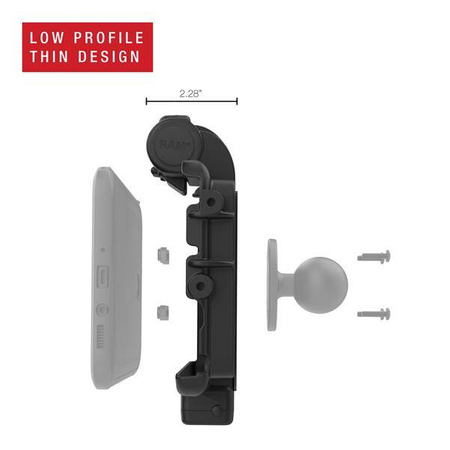

- Slim-profile design at 2.28" depth with metal reinforcement plate

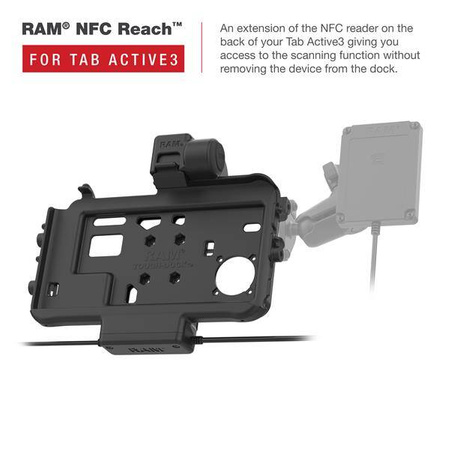

- Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments
- Provides charging connectivity through integrated pogo pin technology and mUSB cable; provides dual-peripheral support via dual USB Type-A cable
- Backed by a 3-year warranty
- Form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in a Samsung OEM protective case or RAM® Skin™
- Power delivered via mUSB connector; connect up to 2 input devices via dual USB-A connector
Brand
Symbol
RAM-HOL-SAM58PD2TU
Producer code
793442016776
Product Weight
499 g
Hardware Included
(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) GDS® Genuine USB 2.0 Straight Cable|(1) Optional Cable Clamp Housing|(2) Large Cable Ties|(8) Small Cable Ties
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
4.4-5.4VDC (USB power source dependent)
Output Voltage
4.4VDC - 5.4VDC (USB power source dependent)
Input Connector
mUSB Female
Input Cable Length
214mm
Output Connector
(2) USB 2.0 Type A
Output Cable Length
217mm
Transfer Speed
12Mbps
Peripheral Output
900mAh (per port)
Samsung Tab Active3
Samsung Tab Active5
Ask a question
Write your opinion
- View details
The low-profile RAM Power + Data Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58PD2TU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated mUSB cable, taking advantage of the Tab Active5 & 3's pogo pad docking contactssimply dock the device for a seamless charging experience. Add up to two peripherals with the built-in dual USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. This modular dock is compatible with the RAM Skin or factory device skin along with most RAM accessories including: RAM Vent-Temp, RAM NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. Also included is an mUSB to USB Type-A extension cord, cable clamp, and zip ties for cable management. BrandSymbolRAM-HOL-SAM58PD2TUProducer code793442016776Product Weight499 gHardware Included(4) #8-32 x 5/8" Machine Screws|(4) #8-32 Nylock Nuts|(1) GDS® Genuine USB 2.0 Straight Cable|(1) Optional Cable Clamp Housing|(2) Large Cable Ties|(8) Small Cable TiesHole Pattern4-Hole AMPS: 1.181" x 1.496"MaterialsHigh strength compositePackaging TypePoly BagInput Voltage4.4-5.4VDC (USB power source dependent)Output Voltage4.4VDC - 5.4VDC (USB power source dependent)Input ConnectormUSB FemaleInput Cable Length214mmOutput Connector(2) USB 2.0 Type AOutput Cable Length217mmTransfer Speed12MbpsPeripheral Output900mAh (per port) - CompatibilitySamsung Tab Active3Samsung Tab Active5
