RAM® Motorcycle Brake/Clutch Reservoir Base with Add-On Ball
Part#:UPC:
RAM-B-309-2U
793442130922
Brand
Symbol
RAM-B-309-2U
Producer code
793442130922
Product Weight
118 g
163 g
Hardware Included
Assembly Hardware|(2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers
Weight Capacity
Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Mounting Type
Brake/Clutch Reservoir
Ball & Socket Size
B Size 1" (Holds 907.18 gramss)
Vehicle Type
Motorcycle
Component parts
RAM-B-309-3U
Ball Size
B Size (1")
Ask a question
Write your opinion
- View details

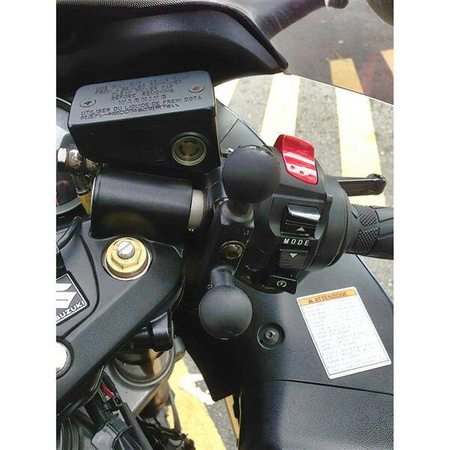

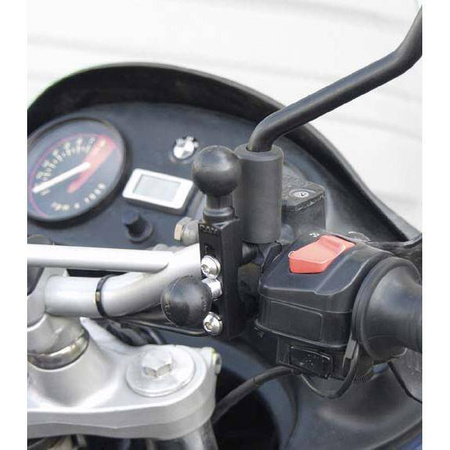

The RAM-B-309-2U connects to your handlebar clutch/brake clamp, left or right side, and holds two 1" diameter mounting ball. The ball that is connected between the hole centers is removable. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-2 base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". BrandSymbolRAM-B-309-2UProducer code793442130922Product Weight118 g163 gHardware IncludedAssembly Hardware|(2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock WashersWeight CapacityStandard Use: 907.18 gramss|Heavy-Duty Use: 453.59 gramsMaterialsMarine-grade aluminumPackaging TypePoly BagMounting TypeBrake/Clutch ReservoirBall & Socket SizeB Size 1" (Holds 907.18 gramss)Vehicle TypeMotorcycleComponent partsRAM-B-309-3UBall SizeB Size (1") - Recommended products
