RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Short
RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Short
RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Short
RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Short

RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Short

Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
List price$76.41
$90.26
/ pc incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions
  • View details

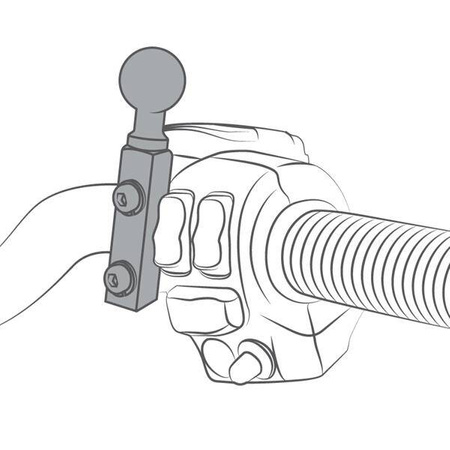

    The RAM-B-174U-A consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, short length double socket arm and diamond plate for mounting to RAM device cradles or anything with an AMPs hole pattern. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing position.
    Symbol
    RAM-B-174U-A
    Producer code
    793442952623
    Product Weight
    331 g
    Hardware Included
    (2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2" Hex Bolts|(2) 1/4"-20 x 2.5" Hex Bolts|(2) 1/2" Spacers|(2) 1/4" Split Lock Washers|(1) 1/4"-20 U-Bolt for .5" - 1" Rails|(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails|(2) 1/4"-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt S
    Clamp Range
    .5" - 1.25" diameter
    Socket-to-Socket Length
    1.75"
    Hole Pattern
    2-Hole AMPS: 1.912"
    AMPS 2-Hole
    Weight Capacity
    Standard Use: 907.18 gramss|Heavy-Duty Use: 453.59 grams
    Materials
    Marine-grade aluminum
    Packaging Type
    Poly Bag
    Mounting Type
    Handlebar/Rail
    Brake/Clutch Reservoir
    Ball & Socket Size
    B Size 1" (Holds 907.18 gramss)
    Socket Arm Length
    Short Arm
    Diameter Range
    .5" - 1.25"
    Vehicle Type
    Motorcycle
    Component parts
    RAM-B-201U-A
    RAM-B-238U
    RAM-B-309-7U
    Socket To Socket Length
    1.75"
    Ball Size
    B Size (1")
