Part#:UPC:
RAM-VB-150-SW1
793442903229
Brand
Symbol
RAM-VB-150-SW1
Producer code
793442903229
Series
Product Weight
7711 g
Hardware Included
Assembly Hardware|(2) M10 x 40mm Hex Bolts|(2) 3/8" Fender Washers
Tray Dimensions
Width Range: 10" - 16"|Side Arm Clamp Height: .5" - 1.75"|Tray Depth: 10"|Tray Thickness: 2.125"
Hole Pattern
Seat Bolt Distance: 16.625" center to center
Materials
Powder coated steel|Marine grade-aluminum|High strength composite
Packaging Type
Box
Mounting Type
Floor Mount
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Vehicle
Scion xB
Scion xB (2005-2007)
Device or Accessory Type
Laptop
Vehicle Type
Car & Truck
Component parts
RAM-234-3
RAM-VB-150
RAM-VP-SW1-47
Ball Size
C Size (1.5")
Ask a question
Write your opinion
- View details

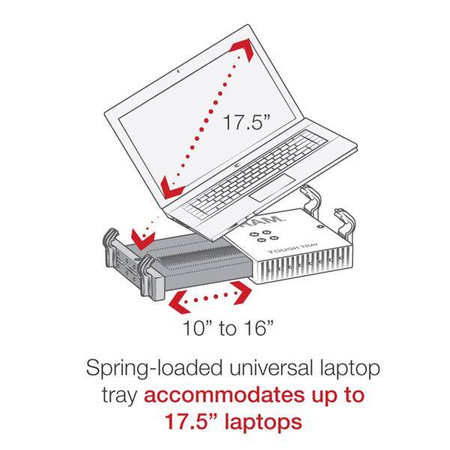

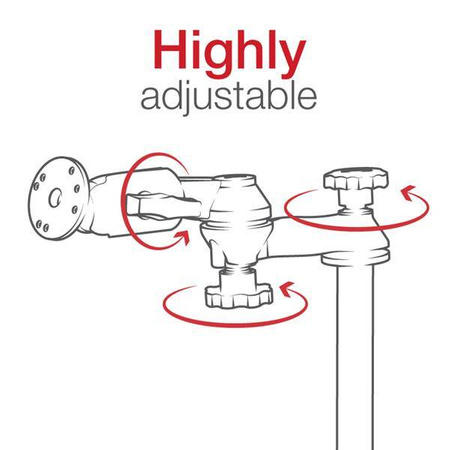

This No-Drill Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray is spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens) . The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics. BrandSymbolRAM-VB-150-SW1Producer code793442903229SeriesProduct Weight7711 gHardware IncludedAssembly Hardware|(2) M10 x 40mm Hex Bolts|(2) 3/8" Fender WashersTray DimensionsWidth Range: 10" - 16"|Side Arm Clamp Height: .5" - 1.75"|Tray Depth: 10"|Tray Thickness: 2.125"Hole PatternSeat Bolt Distance: 16.625" center to centerMaterialsPowder coated steel|Marine grade-aluminum|High strength compositePackaging TypeBoxMounting TypeFloor MountBall & Socket SizeC Size 1.5" (Holds 1814.37 gramss)VehicleScion xBScion xB (2005-2007)Device or Accessory TypeLaptopVehicle TypeCar & TruckComponent partsRAM-234-3RAM-VB-150RAM-VP-SW1-47Ball SizeC Size (1.5") - Recommended products
