RAM® No-Drill™ Locking Mount for '99-16 Ford F-250 - F 750 + More

RAM® No-Drill™ Locking Mount for '99-16 Ford F-250 - F 750 + More

Name: RAM® No-Drill™ Locking Mount for '99-16 Ford F-250 - F 750 + More
Brand: RAM Mounts
Price: 806.08 USD
Availability: OutOfStock

Part#:

RAM-VB-185-SW1-SK

UPC:

793442947223

+ Add to compare Add to shopping list

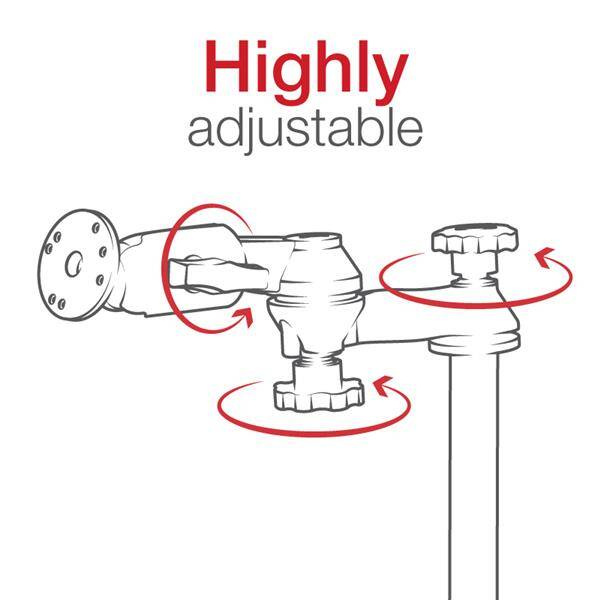

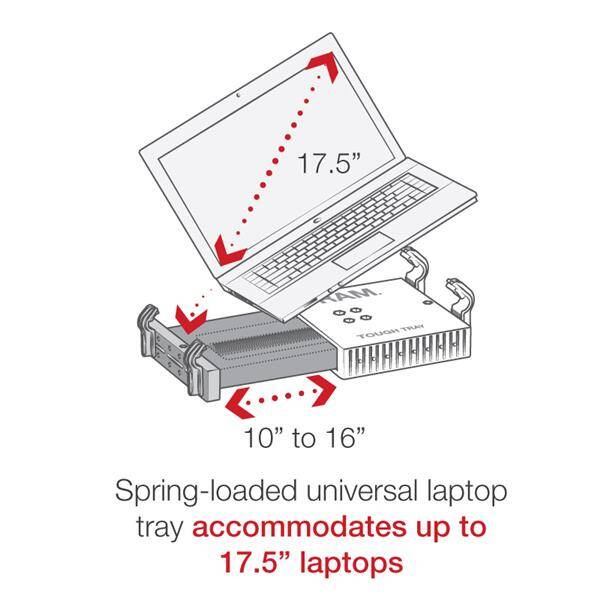

This No-Drill Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray is spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens) . The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics. The included Pin-Lock security locking system is designed to prevent tampering and theft of your laptop. With an emphasis on aesthetics and function, the security knobs are low profile and only add a small amount of additional bulk to your system when compared to the standard knob included. At a fraction of the cost of currently available keyed locking knobs, the additional peace of mind and tamper resistance comes at a very affordable price.

Brand

RAM Mounts

Symbol

RAM-VB-185-SW1-SK

Producer code

793442947223

Series

Tough-Tray No-Drill

Product Weight

7711 g

Hardware Included

Tray Dimensions

Width Range: 10" - 16"|Side Arm Clamp Height: .5" - 1.75"|Tray Depth: 10"|Tray Thickness: 2.125"

Hole Pattern

Seat Bolt Distance: 11.5" center to center

Materials

Powder coated steel|Marine grade-aluminum|High strength composite

Packaging Type

Box

Mounting Type

Floor Mount

Ball & Socket Size

C Size 1.5" (Holds 1814.37 gramss)

Vehicle

Ford Excursion

Ford F-250

Ford F-350

Ford F-450

Ford F-550

Ford F-650

Ford F-750

Ford F-250 (1999-2016)

Ford F-350 (1999-2016)

Ford F-450 (1999-2016)

Ford F-550 (1999-2016)

Ford F-650 (1999-2023)

Ford Excursion (2000-2005)

Ford F-750 (1999-2023)

Device or Accessory Type

Laptop

Vehicle Type

Car & Truck

Component parts

RAM-234-3

RAM-234-SKU

RAM-VB-185

RAM-VP-SW1-89

Ball Size

C Size (1.5")

Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.

Ask a question

Write your opinion

View details
This No-Drill Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray is spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens) . The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics. The included Pin-Lock security locking system is designed to prevent tampering and theft of your laptop. With an emphasis on aesthetics and function, the security knobs are low profile and only add a small amount of additional bulk to your system when compared to the standard knob included. At a fraction of the cost of currently available keyed locking knobs, the additional peace of mind and tamper resistance comes at a very affordable price.
Brand
RAM Mounts
Symbol
RAM-VB-185-SW1-SK
Producer code
793442947223
Series
Tough-Tray No-Drill
Product Weight
7711 g
Hardware Included
Assembly Hardware|(2) M12-1.75 x 100mm Hex Bolts|(2) M12-1.75 x 60mm Hex Bolts|(2) M12 Lock Washers|(2) 3/8" Stand-Offs|(2) 1" Stand-Offs
Tray Dimensions
Width Range: 10" - 16"|Side Arm Clamp Height: .5" - 1.75"|Tray Depth: 10"|Tray Thickness: 2.125"
Hole Pattern
Seat Bolt Distance: 11.5" center to center
Materials
Powder coated steel|Marine grade-aluminum|High strength composite
Packaging Type
Box
Mounting Type
Floor Mount
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Vehicle
Ford Excursion
Ford F-250
Ford F-350
Ford F-450
Ford F-550
Ford F-650
Ford F-750
Ford F-250 (1999-2016)
Ford F-350 (1999-2016)
Ford F-450 (1999-2016)
Ford F-550 (1999-2016)
Ford F-650 (1999-2023)
Ford Excursion (2000-2005)
Ford F-750 (1999-2023)
Device or Accessory Type
Laptop
Vehicle Type
Car & Truck
Component parts
RAM-234-3
RAM-234-SKU
RAM-VB-185
RAM-VP-SW1-89
Ball Size
C Size (1.5")
