RAM® No-Drill™ Mount for '12-24 RAM 2500-5500 + More
RAM® No-Drill™ Mount for '12-24 RAM 2500-5500 + More
RAM® No-Drill™ Mount for '12-24 RAM 2500-5500 + More
RAM® No-Drill™ Mount for '12-24 RAM 2500-5500 + More
RAM® No-Drill™ Mount for '12-24 RAM 2500-5500 + More
RAM® No-Drill™ Mount for '12-24 RAM 2500-5500 + More
RAM® No-Drill™ Mount for '12-24 RAM 2500-5500 + More
RAM® No-Drill™ Mount for '12-24 RAM 2500-5500 + More

RAM® No-Drill™ Mount for '12-24 RAM 2500-5500 + More

Part#:
RAM-VB-178A-SW2
UPC:
793442009600
+ Add to compareAdd to shopping list
  • Features:
  • Custom vehicle tablet mount designed specifically for 2012-2023 Ram 2500-5500 trucks
  • Dual articulating swing arms allow for ideal device placement; compatible with a variety of tablet holders and laptop holders
  • Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts
  • Made of powder-coated steel and marine-grade aluminum
  • Backed by a lifetime warranty
  • Custom vehicle tablet mount designed specifically for 2012-2024 Ram 2500-5500 trucks
Size
Availability and ShippingQuantity
Sizeuniwersalny
Product made to order
Product made to order
Notify about availability
List price$475.19
$556.92
/ pc incl. VAT
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
  • View details
  • Recommended products
  • Ask a question
  • Opinions

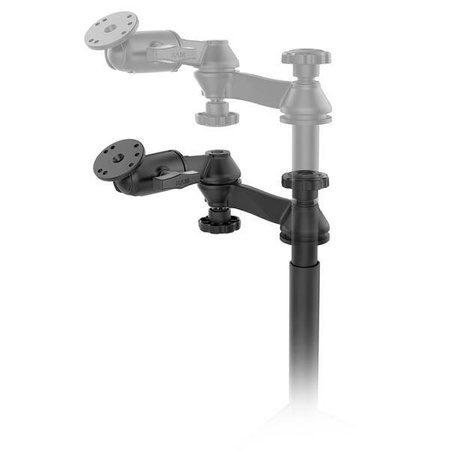

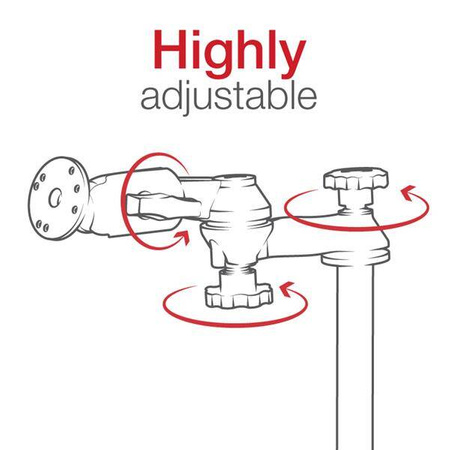

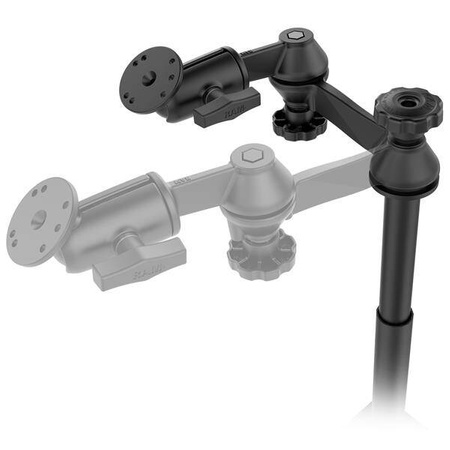

This RAM No-Drill mounting system installs quickly and easily into a range of Ram 1500 and Ram 2500 trucks using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18. Dual swing arms provide articulation and 12 of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.
Brand
RAM Mounts
Symbol
RAM-VB-178A-SW2
Producer code
793442009600
Series
No-Drill
Product Weight
6350 g
5897 g
Hardware Included
Assembly Hardware|(2) M8-1.25 x 60mm Hex Bolts|(2) 3/4" Stand-Offs|(2) 5/16" Flat Washers
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter|Seat Bolt Distance: 13.25" center to center
AMPS 4-Hole
3-Hole 120 Degree (Small)
Plate Size
2.5" Diameter
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Powder coated steel|Marine grade-aluminum
Packaging Type
Box
Mounting Type
Floor Mount
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Vehicle
RAM 1500
RAM 1500 Classic
RAM 2500 - 5500
RAM 1500 (2012-2018)
RAM 1500 Classic (2019-2023)
RAM 2500 - 5500 (2012-2023)
RAM 2500 - 5500 (2012-2024)
RAM 1500 Classic (2019-2024)
Vehicle Type
Car & Truck
Component parts
RAM-VB-178A
RAM-VP-SW1-89
Ball Size
C Size (1.5")
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:
  • View details
    This RAM No-Drill mounting system installs quickly and easily into a range of Ram 1500 and Ram 2500 trucks using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18. Dual swing arms provide articulation and 12 of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.
    Brand
    RAM Mounts
    Symbol
    RAM-VB-178A-SW2
    Producer code
    793442009600
    Series
    No-Drill
    Product Weight
    6350 g
    5897 g
    Hardware Included
    Assembly Hardware|(2) M8-1.25 x 60mm Hex Bolts|(2) 3/4" Stand-Offs|(2) 5/16" Flat Washers
    Hole Pattern
    4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter|Seat Bolt Distance: 13.25" center to center
    AMPS 4-Hole
    3-Hole 120 Degree (Small)
    Plate Size
    2.5" Diameter
    Weight Capacity
    Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
    Materials
    Powder coated steel|Marine grade-aluminum
    Packaging Type
    Box
    Mounting Type
    Floor Mount
    Ball & Socket Size
    C Size 1.5" (Holds 1814.37 gramss)
    Vehicle
    RAM 1500
    RAM 1500 Classic
    RAM 2500 - 5500
    RAM 1500 (2012-2018)
    RAM 1500 Classic (2019-2023)
    RAM 2500 - 5500 (2012-2023)
    RAM 2500 - 5500 (2012-2024)
    RAM 1500 Classic (2019-2024)
    Vehicle Type
    Car & Truck
    Component parts
    RAM-VB-178A
    RAM-VP-SW1-89
    Ball Size
    C Size (1.5")
