Part#:UPC:
RAM-VB-185-SW2
793442009617
- Features:
- RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

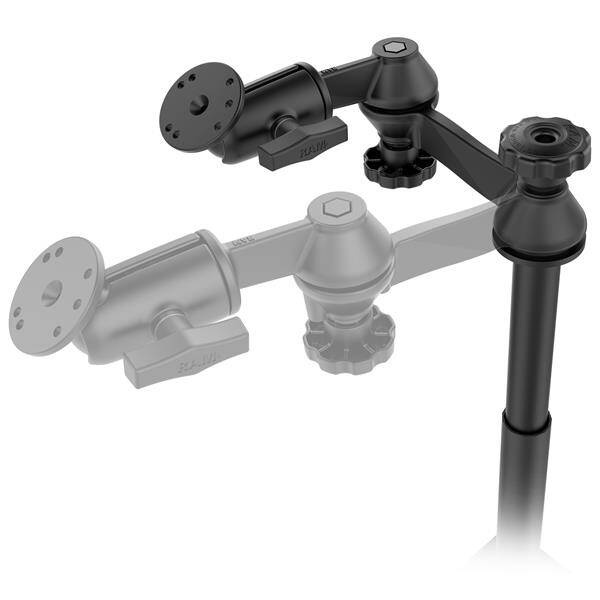

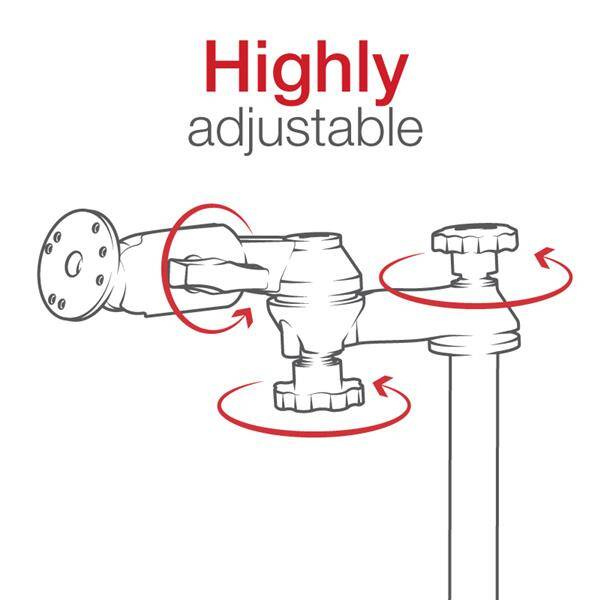

- Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet and laptop holders
- Made of powder-coated steel and marine-grade aluminum
- Backed by a lifetime warranty
Brand
Symbol
RAM-VB-185-SW2
Producer code
793442009617
Series
Product Weight
6804 g
Hardware Included
Assembly Hardware|(2) M12-1.75 x 100mm Hex Bolts|(2) M12-1.75 x 60mm Hex Bolts|(2) M12 Lock Washers|(2) 3/8" Stand-Offs|(2) 1" Stand-Offs
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter|Seat Bolt Distance: 11.5" center to center
AMPS 4-Hole
3-Hole 120 Degree (Small)
Plate Size
2.5" Diameter
Weight Capacity
Standard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramss
Materials
Powder coated steel|Marine grade-aluminum
Packaging Type
Box
Mounting Type
Floor Mount
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Vehicle
Ford Excursion
Ford F-250
Ford F-350
Ford F-450
Ford F-550
Ford F-650
Ford F-750
Ford F-250 (1999-2016)
Ford F-350 (1999-2016)
Ford F-450 (1999-2016)
Ford F-550 (1999-2016)
Ford F-650 (1999-2023)
Ford Excursion (2000-2005)
Ford F-750 (1999-2023)
Vehicle Type
Car & Truck
Component parts
RAM-VB-185
RAM-VP-SW1-89
Ball Size
C Size (1.5")
Ask a question
Write your opinion
- View details

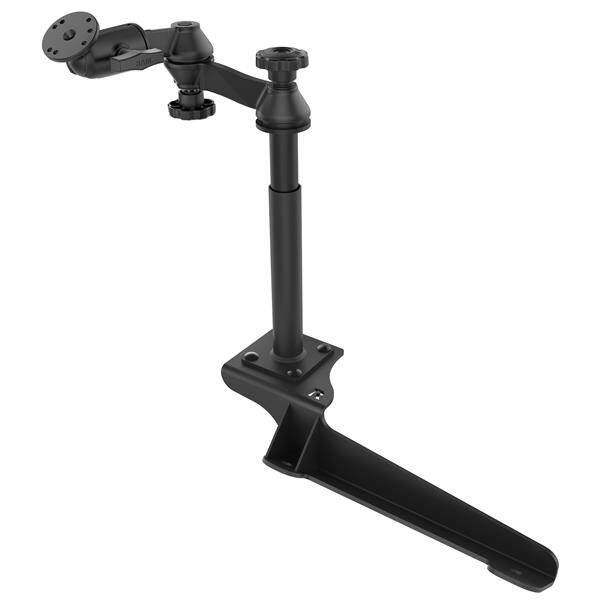

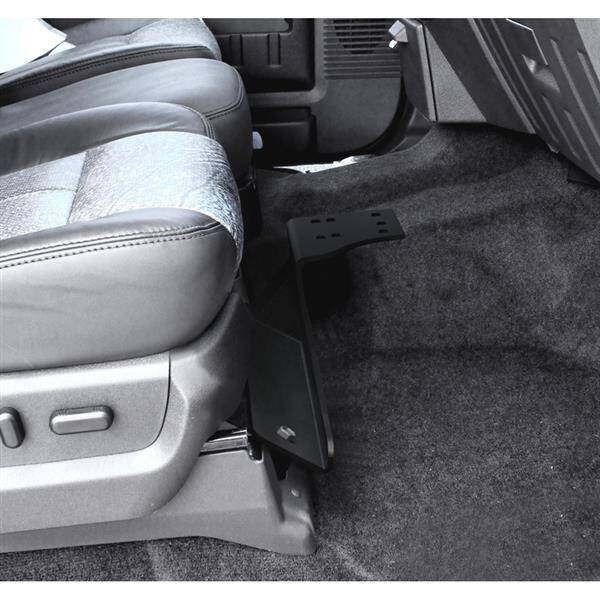

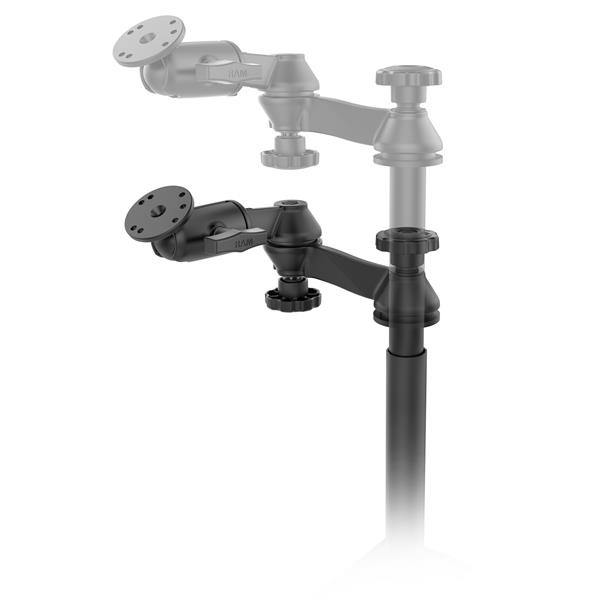

This RAM No-Drill mounting system installs quickly and easily into a range of Ford F-Series and Ford Excursion vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12" to 18". Dual swing arms provide articulation and 12" of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. BrandSymbolRAM-VB-185-SW2Producer code793442009617SeriesProduct Weight6804 gHardware IncludedAssembly Hardware|(2) M12-1.75 x 100mm Hex Bolts|(2) M12-1.75 x 60mm Hex Bolts|(2) M12 Lock Washers|(2) 3/8" Stand-Offs|(2) 1" Stand-OffsHole Pattern4-Hole AMPS: 1.181" x 1.496"|3-Hole 120-Degree: 1.812" Diameter|Seat Bolt Distance: 11.5" center to centerAMPS 4-Hole3-Hole 120 Degree (Small)Plate Size2.5" DiameterWeight CapacityStandard Use: 1814.37 gramss|Heavy-Duty Use: 1360.78 gramssMaterialsPowder coated steel|Marine grade-aluminumPackaging TypeBoxMounting TypeFloor MountBall & Socket SizeC Size 1.5" (Holds 1814.37 gramss)VehicleFord ExcursionFord F-250Ford F-350Ford F-450Ford F-550Ford F-650Ford F-750Ford F-250 (1999-2016)Ford F-350 (1999-2016)Ford F-450 (1999-2016)Ford F-550 (1999-2016)Ford F-650 (1999-2023)Ford Excursion (2000-2005)Ford F-750 (1999-2023)Vehicle TypeCar & TruckComponent partsRAM-VB-185RAM-VP-SW1-89Ball SizeC Size (1.5") - Recommended products
