Part#:UPC:
RAM-VB-168-SW1
793442906367
- Features:

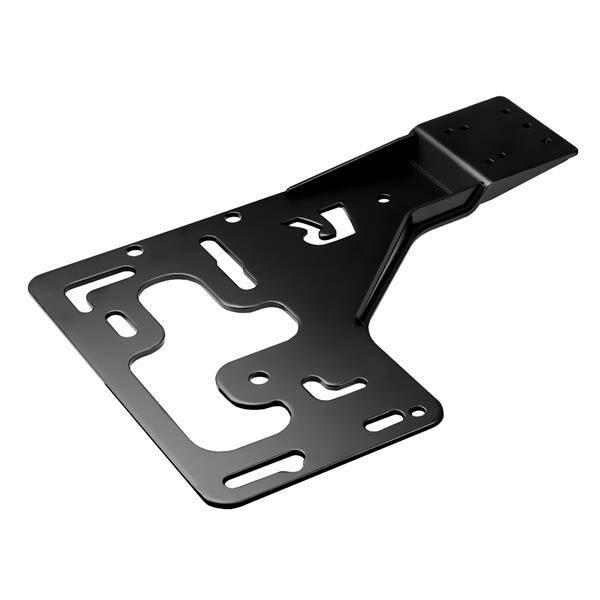

- RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments
- Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
- Made of powder-coated steel and marine-grade aluminum
- Backed by a lifetime warranty
Brand
Symbol
RAM-VB-168-SW1
Producer code
793442906367
Series
Product Weight
10886 g
10433 g
Hardware Included
Assembly Hardware
Tray Dimensions
Width Range: 10" - 16"|Side Arm Clamp Height: .5" - 1.75"|Tray Depth: 10"|Tray Thickness: 2.125"
Hole Pattern
See Drawing
Materials
Powder coated steel|Marine grade-aluminum|High strength composite
Packaging Type
Box
Mounting Type
Floor Mount
Ball & Socket Size
C Size 1.5" (Holds 1814.37 gramss)
Device or Accessory Type
Laptop
Vehicle Type
Car & Truck
Component parts
RAM-234-3
RAM-VB-109-3U
RAM-VB-168
RAM-VP-SW1-1218
Ball Size
C Size (1.5")
Ask a question
Write your opinion
- View details

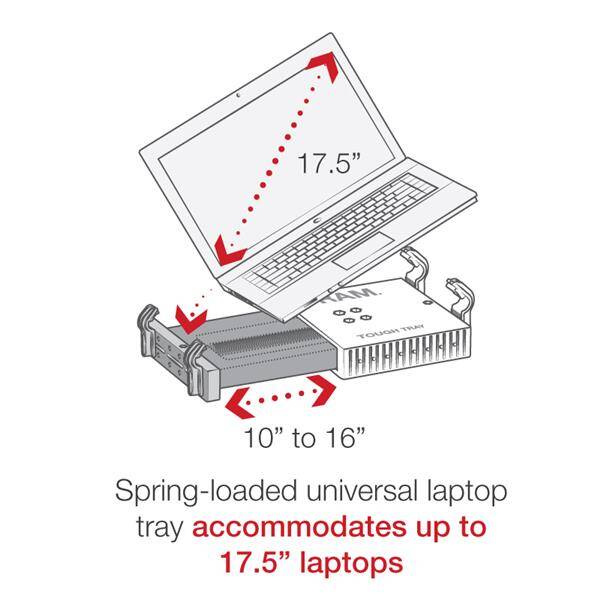

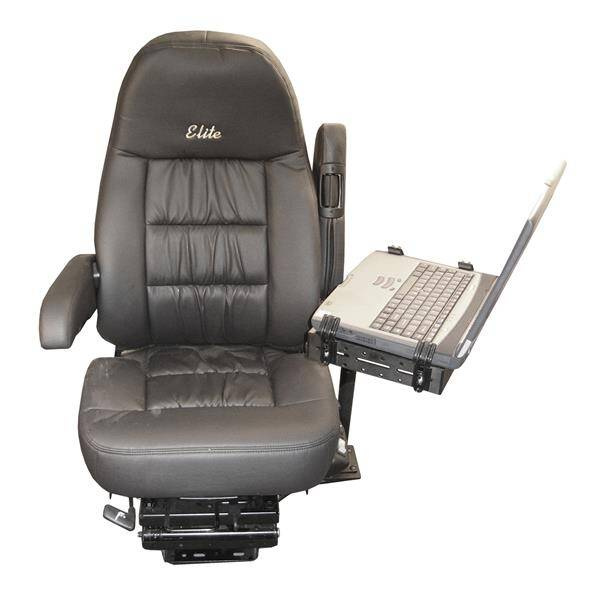

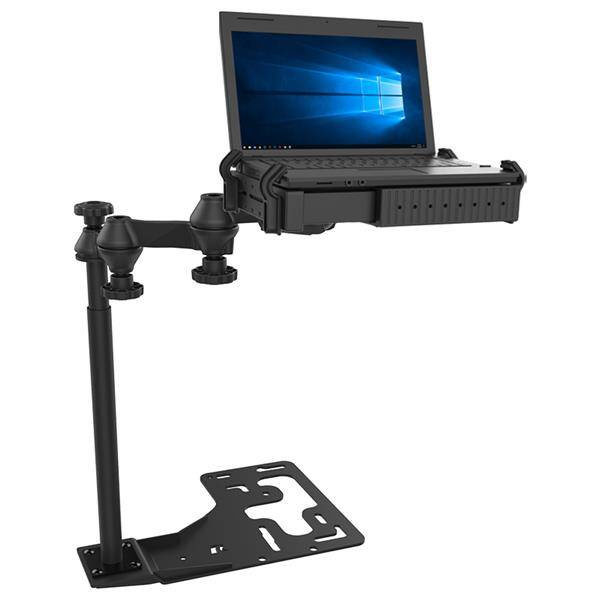

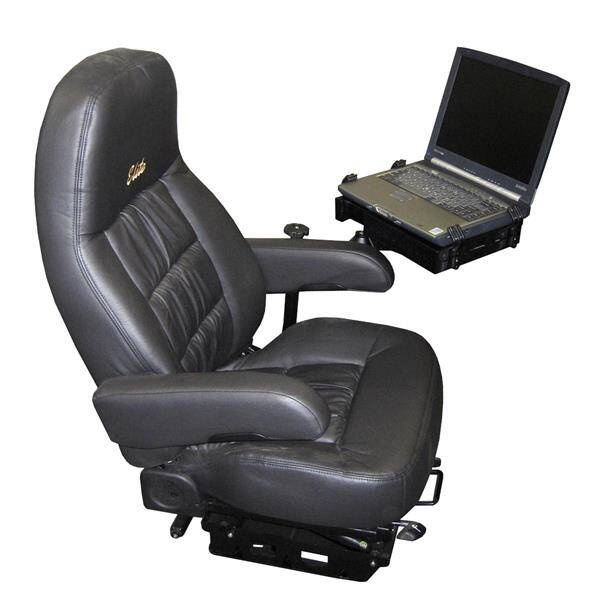

This No-Drill Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. The triple swing arm provides articulation and 18 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray is spring loaded to accommodate 10" to 16" wide laptops. The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics. BrandSymbolRAM-VB-168-SW1Producer code793442906367SeriesProduct Weight10886 g10433 gHardware IncludedAssembly HardwareTray DimensionsWidth Range: 10" - 16"|Side Arm Clamp Height: .5" - 1.75"|Tray Depth: 10"|Tray Thickness: 2.125"Hole PatternSee DrawingMaterialsPowder coated steel|Marine grade-aluminum|High strength compositePackaging TypeBoxMounting TypeFloor MountBall & Socket SizeC Size 1.5" (Holds 1814.37 gramss)Device or Accessory TypeLaptopVehicle TypeCar & TruckComponent partsRAM-234-3RAM-VB-109-3URAM-VB-168RAM-VP-SW1-1218Ball SizeC Size (1.5") - Recommended products
